Modern ATMOS wood gasification boilers bring a new perspective on wood burning. By gasification, the reverse combustion of wood, they achieve high efficiency and low fuel consumption with great heating comfort. The hot layer of wood coal, which is formed during gasification in the combustion chamber and which works as a filter, prevents the escape of unburned gas and unused energy into the atmosphere. ATMOS boilers are thus not only economical, but also environmentally friendly. Simple operation, long burning time and an exhaust fan make ATMOS boilers top products on the European market.
Accessories
-
Equithermal control ACD 03/04
It is designed to control the hot water system of a heated building. Control of the controller is simple and intuitive thanks to the touch screen. The controller contains functions for direct control of the boiler, boiler circuit, up to three heating circuits, domestic hot water, solar, etc …
- heating of up to three heating circuits
- domestic hot water heating
- solar heating
- optimal charging / discharging of storage tanks
- automatic switching of operation of two heat sources (boilers)
- complete operation of the boiler, including the exhaust fan
look for more -
Room units for equithermal control ACD 03/04
For optimal and economical heating of your building, we recommend you to purchase one of our room units ARU5, ARU10 and ARU30 with a touch screen as an accessory (for each heating circuit) for a better possibility to regulate the heating system.
look for more -
Optional accessories for equithermal control ATMOS ACD 03/04
Optional accessories that can be purchased in addition to the already created kits for equithermal control ATMOS ACD 03/04
look for more -
The Laddomat 22
Hydraulic fitting forming the boiler circuit to maintain the minimum temperature of the return water to the boiler.
For boiler output: 15 – 100 kW
Consists of:
- cast iron body
- thermoregulating valve
- pump
- check valve
- thermometer
- ball valve
look for more -

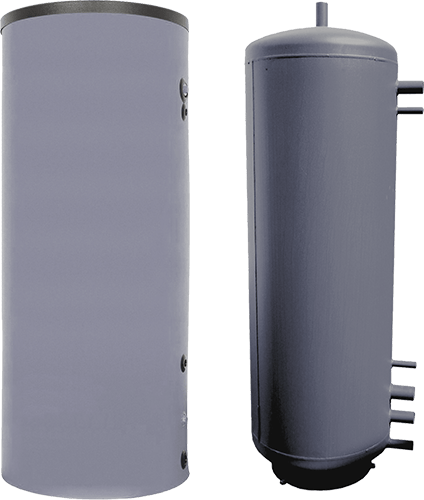

Accumulation tanks
The best connection for solid fuel boilers, increases boiler life and several fuel consumption. If it cannot have the recommended volume of storage tanks, connect the boiler with at least one buffer tank with a volume of 500 l to 1000 l
- lower fuel consumption
- long service life of the boiler and chimney
- can be combined with other heating methods
- designed for combinations of radiators with underfloor heating
- comfortable heating and ideal fuel combustion
- guaranteed more environmentally friendly heating
- warranty on the boiler body 3 years
look for more -
Pellet burners
ATMOS burners are primarily intended for ATMOS pellet boilers or as accessories for combined ATMOS boilers.
Power range: 4.5 – 80 kW
- possibility of connecting four sensors
- two backup inputs for different applications
- solar system control
- automatic burner start after wood burning for DCxxSP boilers
look for more -
Pneumatic pellet feeding
Pneumatic transport of pellets is used for continuous refueling from the external central tank to the pellet tank in the boiler room.
Consists of:
- buffer tank
- separation tank
- suction fan
- rotary pellet level sensor
řízeno elektronickou regulací AC19 a AC21
look for more -
Pellet conveyors
Pellet screw conveyors are designed for ATMOS pellet burners. Manufactured as shaft and shaftless in various lengths. Equipped with a geared motor.
for ATMOS 25 burner
- Conveyors DA1500, DA12345
for ATMOS 45/85 burner
- DRA50 conveyor (1.7 m, 2.5 m, 4 m, 5 m)
for compact tanks with a volume of 240, 300 and 400l
- DRA25 conveyor (1.3 m, 1.7 m)
look for more -
Pellet tanks
The tanks serve as pellet hoppers for automatic pellet boilers. They allow great variability of location in the boiler room and, last but not least, increase the comfort of the boiler operator
Tank volumes
- Pellet tank 250 l
- Pellet tank 500 l
- Pellet tank 1000 l
look for more -
Textile silo for pellets
Large textile bins are designed to store pellets for the heating season. They can be placed in the boiler room or adjacent areas. Another option is to place them in enclosed outdoor shelters so that they are not exposed to sunlight and weather conditions.
- Usable volume 5.5 – 7.9m³
- With STORZ A110 flange
- Convenient storage
- Easy installation
look for more -
Automatic ash removal
For automatic pellet boilers of the DxxP series, automatic ash removal in the form of an external ashtray can be purchased. It requires no special service and increases heating comfort.
look for more -
Pneumatic cleaning of the pellet burner
It is a device designed for cleaning the combustion chamber of the burner when burning lower quality wood pellets, which form lumps. That is, the combustion of wood pellets with a higher content of bark and impurities. The device does not solve and is not intended for burning plant pellets and grain.
look for more -
External air supply for ATMOS A25 pellet burner
The device enables the supply of combustion air to the ATMOS A25 burner from outside areas.
Designed only for ATMOS A25 burner and pure pellet boilers from ATMOS up to a boiler output of 25 kW.
Designed for boilers with an exhaust fan
D20P, D15PX, D20PX, D25PXDesigned for boilers without an exhaust fan
D15P, D10PX, D14P, D21P, D25Plook for more -
Set for installing a pellet burner in the upper door of the ATMOS gasification boiler
Set with ATMOS A25 burner (old version with one AD02 module) to boiler serial number 327 699 Assembly with right opening for the burner A25. Code: S0532 Assembly with left opening for the burner A25. Code: S0533 This connection is duly certified for all boilers equipped with an exhaust fan up to a nominal output…
Boiler conversion kit with manual application for fully automatic heating using an ATMOS pellet burner. Thanks to the simplicity of assembly and disassembly, it is possible to switch back to manual feeding at any time within a few minutes.
look for more -
Connection of boilers ATMOS F1 – F4
Universal stainless steel connection kits for all types of ATMOS boilers up to 40 kW will facilitate and speed up the assembly itself. The set can be used for connection with or without storage tanks, you can choose Laddomat 22 or ESBE and there is the possibility of connecting up to three heating circuits (floor…
look for more -
Connection of boilers ATMOS F12 Laddomat
Professional stainless steel connection based on 35 × 1.5 mm diameter pipe, designed to maintain a minimum temperature of return water to the boiler and quickly connect the boiler using two 6/4“ flat seal fittings. The connection includes all the necessary components required by the manufacturer (safety valve 2.5 bar, vent valve, manometer, Laddomat 22,…
look for more -
Connection of boilers ATMOS F15 – F16 ESBE-PX
The universal set of stainless steel connections for compact pellet boilers of the DxxPX series will facilitate and speed up the assembly itself. The assembly is equipped with ESBE pump groups, connection is possible with or without storage tanks. Up to three heating circuits can be connected (floor heating, radiators, hot water heating).
look for more -
Connection of boilers ATMOS F21 – F22 (boiler circuit)
The universal set of stainless steel connection, including the boiler circuit itself, will facilitate and speed up the installation itself. The assembly can be retrofitted with ESBE pump groups, connection is possible with or without storage tanks. Up to three heating circuits can be connected (floor heating, radiators, DHW).
look for more -
Connection ATMOS F31 and F32 Laddomat AKU
Professional stainless steel connection of accumulation tanks with a boiler circuit using a pipe with a diameter of 35 × 1.5 mm designed to maintain the minimum temperature of the return water to the boiler and quickly connect the accumulation tanks (accumulation tank) in series. The connection contains all the necessary components required by the…
look for more -
Connection of boilers ATMOS F71 ESBE
Connection for systems without accumulation tanks up to 32 kW Description: Professional stainless steel connection of the boiler based on 35 × 1.5 mm diameter pipe, designed to maintain a minimum temperature of return water to the boiler 70 °C and allowing quick installation using two 6/4“ nipples with a flat seal. The connection includes…
look for more -
Boiler connection accessories
The accessories contain a wide range of elements for the extension of the F1 – F4 (F5 – F8), F12 (F13), F15 – F16 (F17 – F18) F21, F22 and F71 sets. From various pipes to pump groups to pump group manifolds.
look for more
