AC16S

Gasification boiler for brown coal briquettes, black coal and wood (fire up).

  • Rated power 18 kW

  • Boiler efficiency 91,1 %

  • Emission class nr. 5 (Ecodesign)

  • Fuel shaft volume 45 l

  • Log length 250 mm

Advantages of ATMOS gasification boilers for lignite briquettes and hard coal

  • Large fuel tank – long burning time – up to 12 hours, depending on boiler type
  • High efficiency – primary and secondary air is preheated to a high temperature
  • Ceramic combustion chamber
  • Ecological combustion – boiler according to EN 303-5:2012 class 5, EKODESIGN 2015/1189

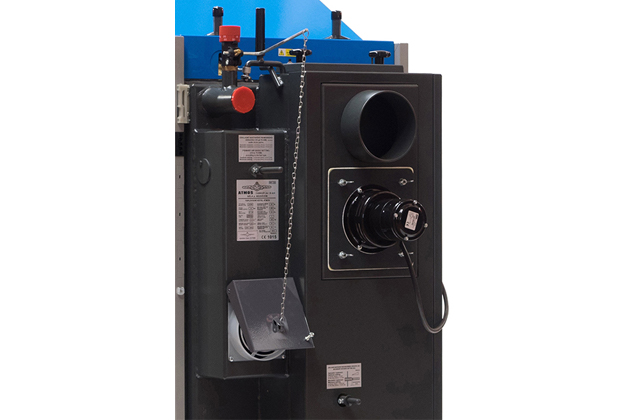

  • Exhaust fan – dust-free ash removal, smokeless boiler room
  • Cooling loop against overheating – without the risk of damaging the boiler
  • Automatic shutdown of the boiler after the fuel burns out – flue gas thermostat
  • Convenient ash removal – large ceramic combustion chamber for ash
  • Small size and low weight
  • Possibility of choosing a door R / L (right/left) for selected types
  • Possibility of connection without accumulation tank
  • High Quality

Installation

ATMOS boilers must be connected via the LADDOMAT 22 or thermoregulation valve (three-way valve controlled by an actuator in case of using electronic control ATMOS ACD 03) to achieve and keeping the minimum temperature of water returning to boiler at 65 °C. We keep the outlet temperature of the boiler in the range of 80 – 90 °C and set the temperature of the water to the radiators or floor heating on the mixing three-way valve as needed (e.g. 30 – 80 °C).

The default configuration of all boilers includes a cooling loop to prevent overheating. We recommend installing a boiler with accumulation tanks, which will reduce fuel consumption and increase heating comfort.

Boilers regulation

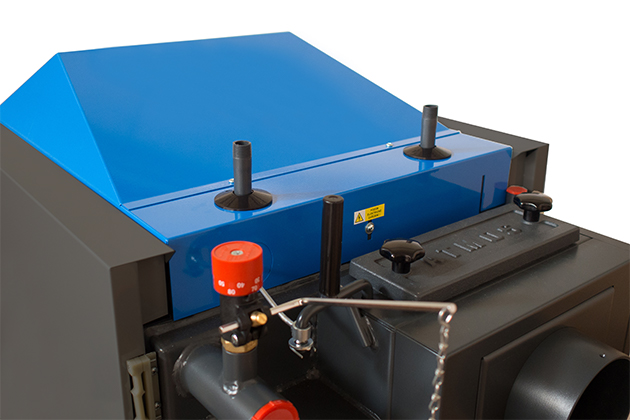

Electromechanical regulation – boiler performance is regulated by an air regulating valve controlled by a draft regulator, FR 124 type, which automatically opens or closes the air valve according to the set water outlet temperature (80 – 90 °C). In addition to performance regulation, the draft regulator helps protect the boiler against overheating. Its advantage is a quick ignition and firing up to the required output when the air valve is fully open. The boilers are equipped with a control thermostat on the instrument panel, which controls the exhaust fan according to the set water outlet temperature (80 – 85 °C) and a flue gas thermostat, which is used to shut down the boiler and turn off the exhaust fan after the fuel has burned out. In the case of connecting a boiler with accumulation tanks, the flue gas thermostat also controls the operation of the pump in the boiler circuit.

The advantage of regulation and design of ATMOS boilers is that the boilers work with a good chimney draft up to 70% of the nominal power even without a fan.



Panel composition:
Main off switch, safety thermostat, thermometer, regulator thermostat and combustion thermostat

Electro-mechanical regulation is an optimum solution for easy management of the operation of the boiler (ventilator).
The design of the panel with standard regulation is a basic design for all produced boilers.





Equithermal regulation ACD 03

Each boiler can be equipped with a modern touch electronic control ATMOS ACD 03 for controlling the entire heating system depending on the outdoor temperature, room temperature and time. This regulation is able to control the boiler itself with a fan with many other functions.





Technical details

Description of the boiler drawing
1. Boiler body 22.  Draught regulator – HONEYWELL FR124
2. Filling door – upper 23.  Heat-resistant fitting – front cube
3. Ashtray door – lower 24.  Fan control (boiler) thermostat
4. Exhaust fan (S) 25.  Door panel – Sibral – thin (32 mm)
5. Heat-resistant fitting – rear cube 26.  Door seal – cord 18 x 18
6. Control panel 27.  Flue gas brake (AC25S)
7. Safety thermostat 30.  Flue gas thermostat
8. Control flap 31.  Capacitor for exhaust fan – 1μF
9. Grate (segment) 32.  Cooling loop against overheating
10. Heat-resistant fitting – spherical space 33.  Primary air regulation
11. Grate pipe 34.  Secondary air regulation
12. Heat-resistant fitting – half-moon 37. Flue gas break – four-armed (AC25S)
13. Firing up valve
14. Heat-resistant fitting – rear part of spherical space
15. Cleaning lid
16. Grate lever K – the flue-gas duct neck
17. The rod for firing up flap L – water outlet from the boiler
18. Thermometer M – water inlet to the boiler
19. Frame shield N – filling valve pipe sleeve
20.  Switch with an indicator light P – socket for the sensor of the valve controlling the cooling loop (TS 131, STS 20)



Boiler dimensions (mm)
AC16S AC25S
A 1166  1185
B 658  758
C  593 675*
D  874 874
E  150/152 150/152
F  65 65
G  210 210
H  933 933
CH  212 212
I  212 212
J 6/4″ 6/4″



Specifications The boiler type
AC16S AC25S
Boiler heat output kW 18 26
Boiler thermal input kW 20,3 28,8
Heating surface m2 1,6 1,9
Fuel shaft volume dm3 (l) 45 60

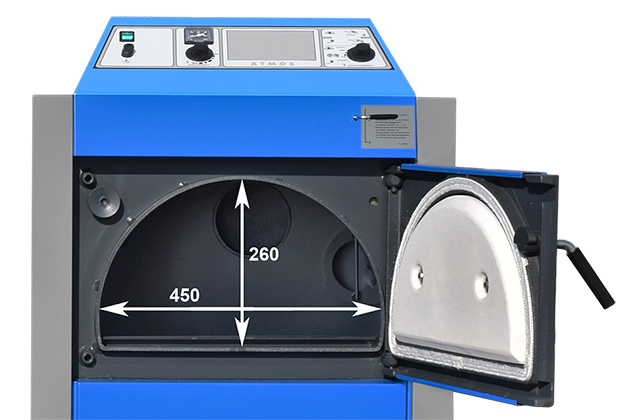

Filling hole dimensions mm 450 x 260 450 x 260
Prescripted chimney draft Pa/mbar 16/0,16 20/0,20
Max. working water overpressure kPa/bar 250/2,5 250/2,5
Boiler weight kg 273 297
Gas-outlet pipe diameter mm 150/152 150/152
Ingress protection of electric parts IP 20 20
Electrical power input (auxiliary) W 50 50
Electrical input in standby mode W 0 0
Ignition mode   manual
Efficiency over the entire performance range % 88,5 90,4
Boiler class 5 5
Boiler category 1
Operating mode non-condensing
Energy efficiency class   B C
Waste gas temperature at nominal output °C 165 177,3
Waste gas combustion products flow weight at nominal output kg/s 0,010 0,015
Specified fuel (preffered) lignite briquettes with calorific value 19 – 23 MJ/kg-1
Specified fuel black coal ORECH 1 with calorific value 20 – 30 MJ/kg-1
Spare fuel (firing up) dry wood with calorific value 15 – 17 MJ/kg-1, water content 12 – 20 %, size 80 – 150 mm
Prescribed wood length mm 250 330
Combustion time at nominal output Hours 4 4
The volume of water in the boiler l 37 45
Boiler hydraulic loss mbar  0,17 0,18
Minimum buffer tank volume l 500 500
Connecting voltage V/Hz  230/50 230/50
Ekodesign

*the width of the boiler after removing the side hoods is 555 mm
