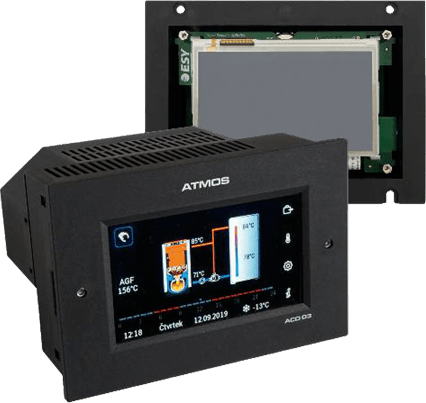

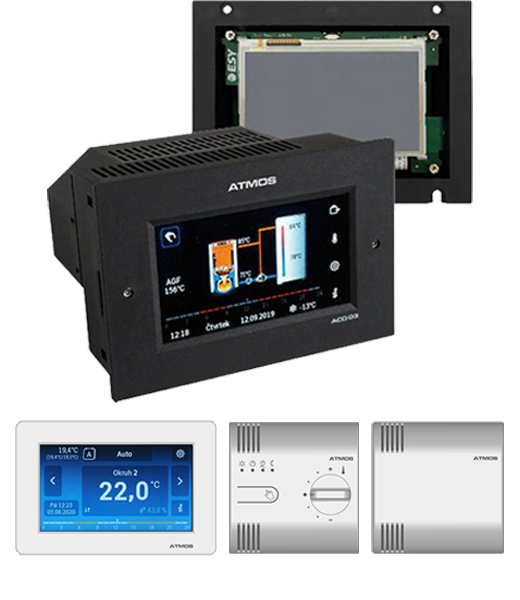

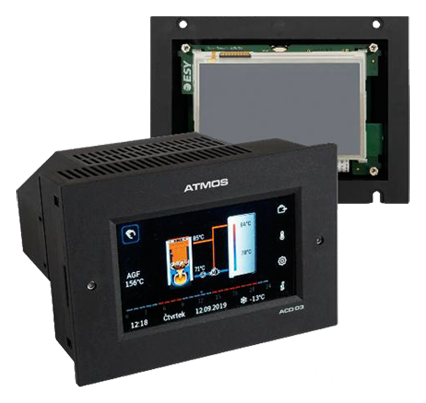

Equithermal control ATMOS ACD 03/04 is a new control element with a touch color display enabling easy control of the boiler and heating system in an intuitive way according to the latest trends. The ACD 03 and ACD 04 controllers differ in the design of the installation box. The control functions of both controllers are the same.

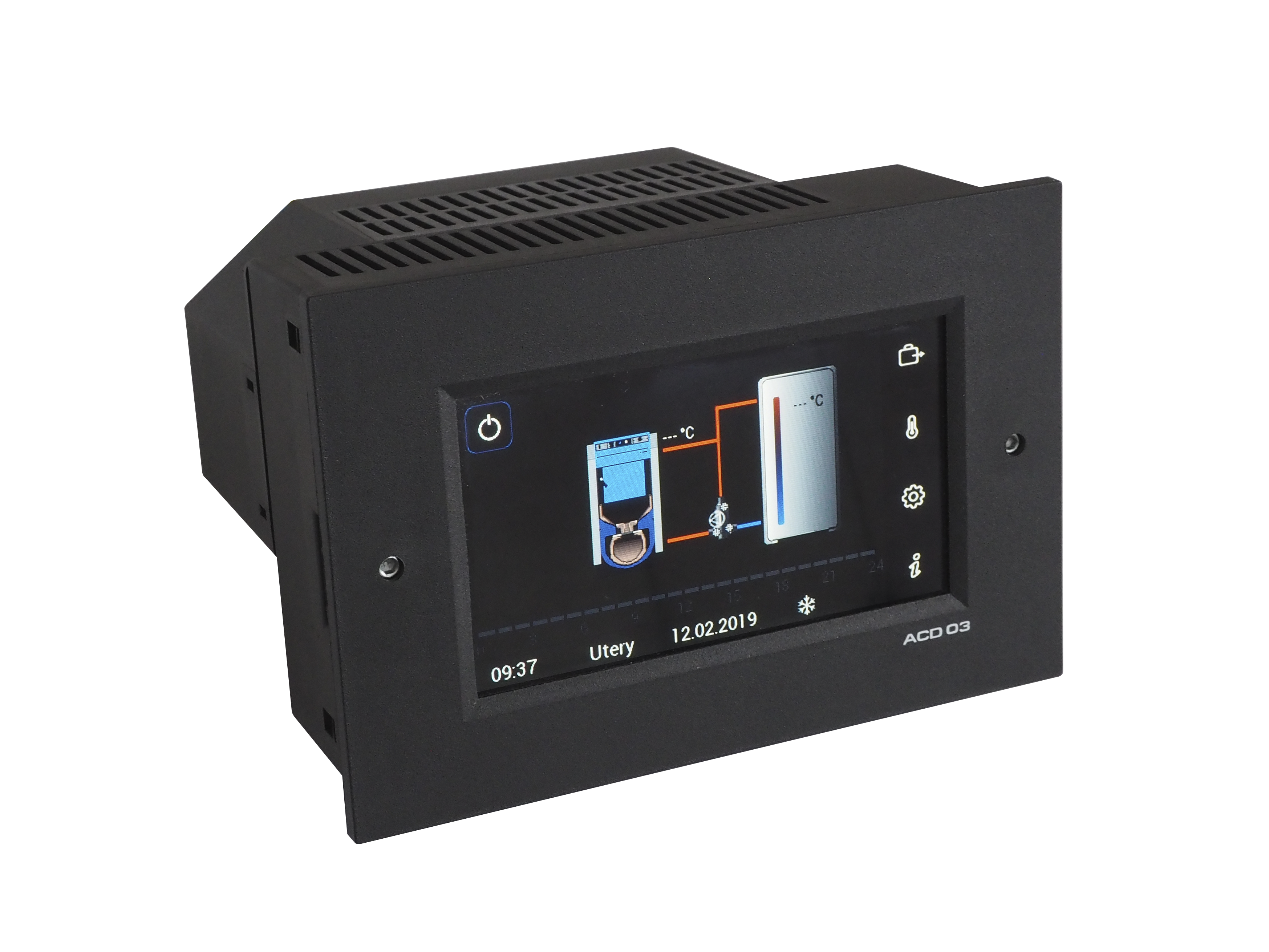

ATMOS ACD 03 - controller for insertion into the boiler panel
The ACD 03 controller is manufactured in a design that is intended to be inserted into the boiler panel after breaking a pre-prepared hole (from the factory) for the ACD 03 control (dimensions 92 x 138 mm). The controller can also be inserted into a special SWS 18 box designed for wall installation.
The controller is able to control the following:
- heating of three heating circuits (eg two circuits classic radiators + one circuit underfloor heating) according to the required room temperature, outdoor temperature (equithermal curves) and depending on the time using three types of room units (sensors)
or
one boiler circuit and two heating circuits – boiler circuit for maintaining the minimum return water temperature to the boiler 65 ° C, using a three-way mixing valve with actuator and pump and heating of two heating circuits (eg conventional radiators or underfloor heating) according to the required room temperature, outdoor temperatures (equithermal curves) and as a function of time using three types of room units (sensors) - domestic hot water (DHW) heating to the required temperature (eg 55 ° C)
- solar heating via solar collectors
- optimal charging and discharging of accumulation tanks according to customer requirements
- automatic switching of operation of two heat sources (boilers), eg wood and natural gas / wood and pellet boilers
- complete operation of the boiler based on the needs of the heating system, including the exhaust fan
- automatic wood ignition
Electronic control ATMOS ACD 03 is supplied as a set including the necessary sensors and connection terminal block for easy installation in the boiler panel:
Equithermal control set designed for pellet boilers (without flue gas sensor) ATMOS ACD 03
– order code S0103
| Set composition / Name | Production designation | Number in set | Measuring range | The cable length | |
| Equithermal controller with touch screen and relay module – Complete (A + B) |  |
ATMOS ACD 03 | 1 | – | – |

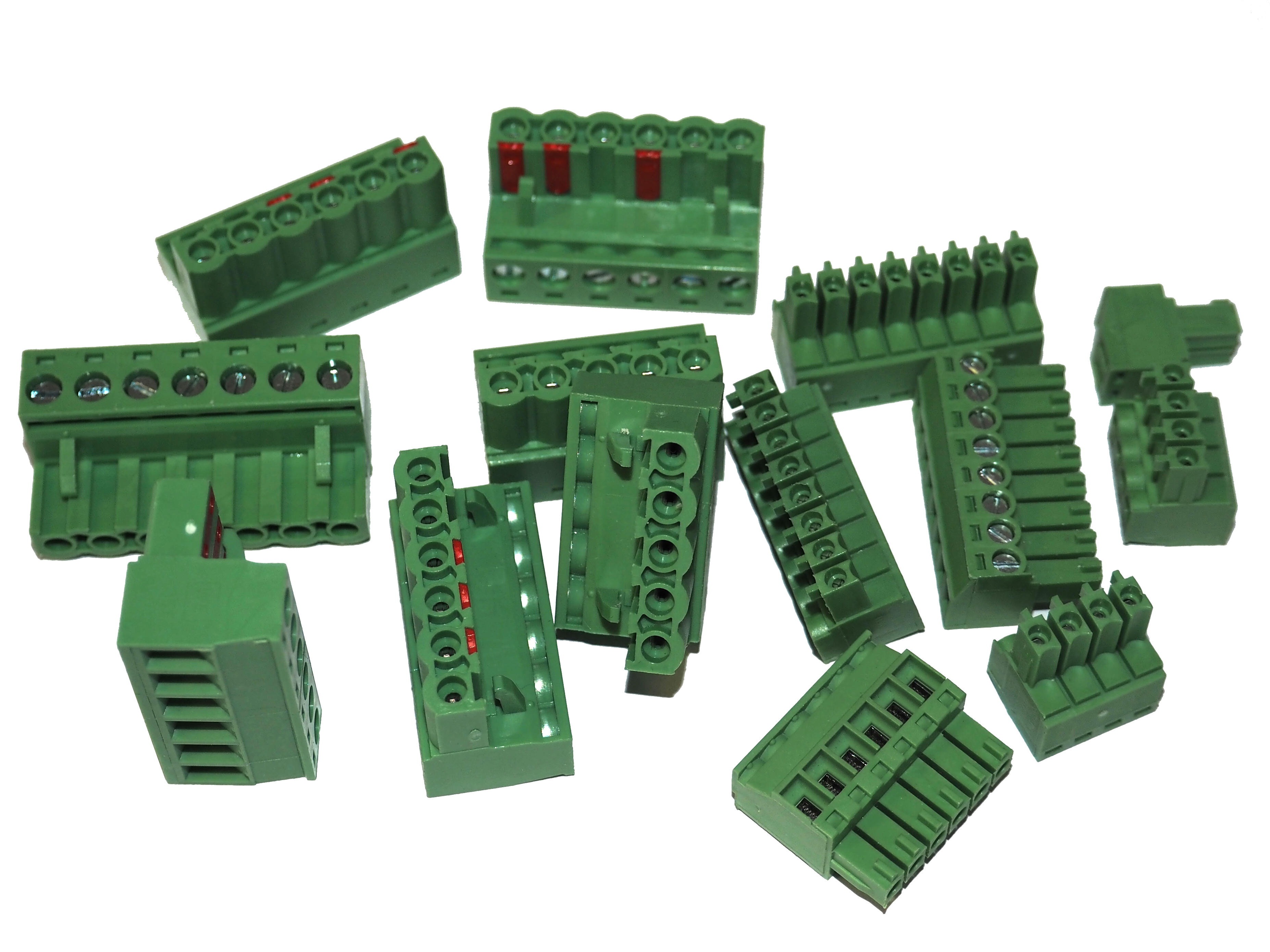

| Connector set |  |
SCS34 | 1 | – | – |

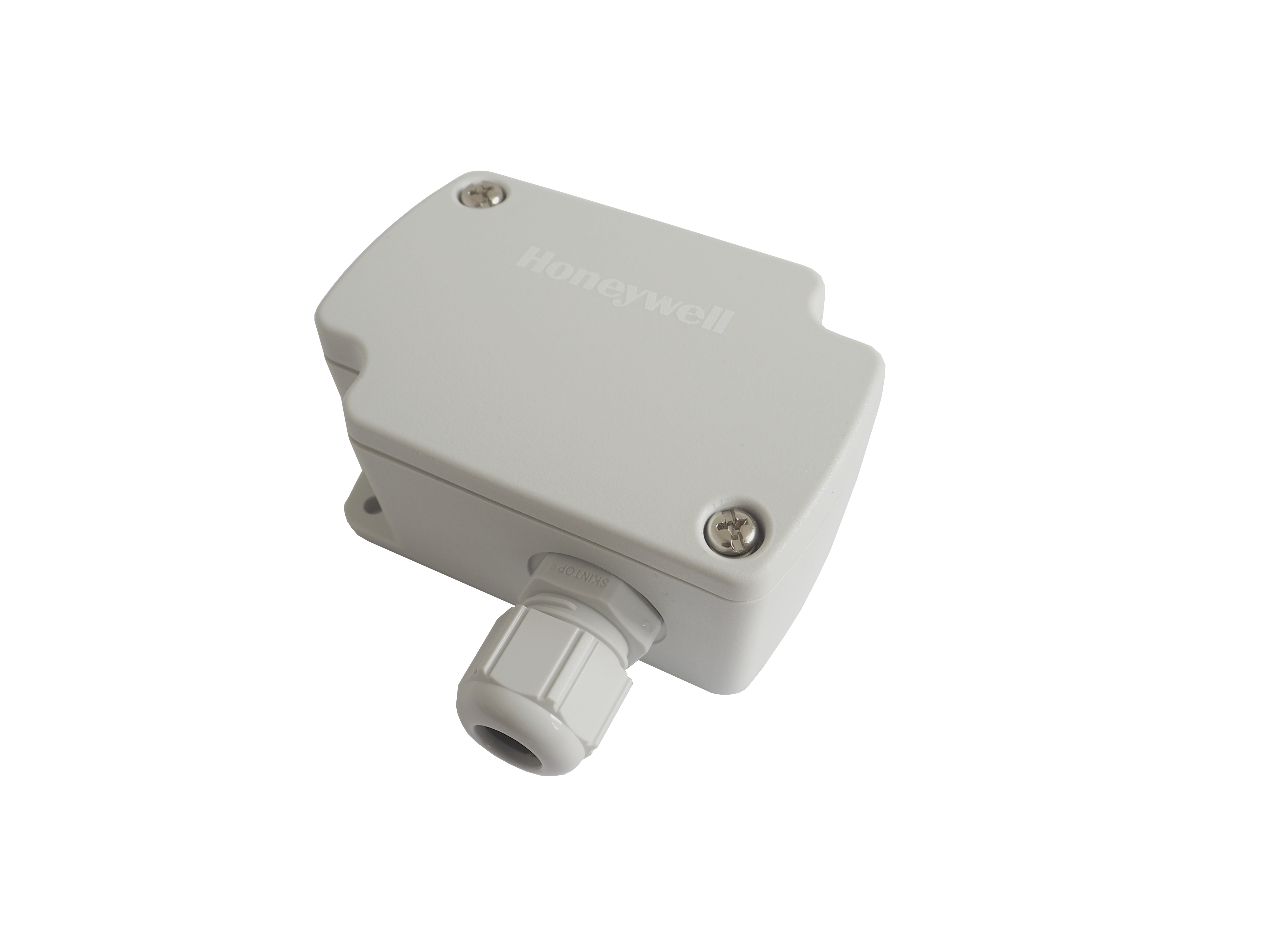

| Outdoor temperature (AF) sensor – wired |  |
AF20-B65 | 1 | -40… +70 | 0 m |

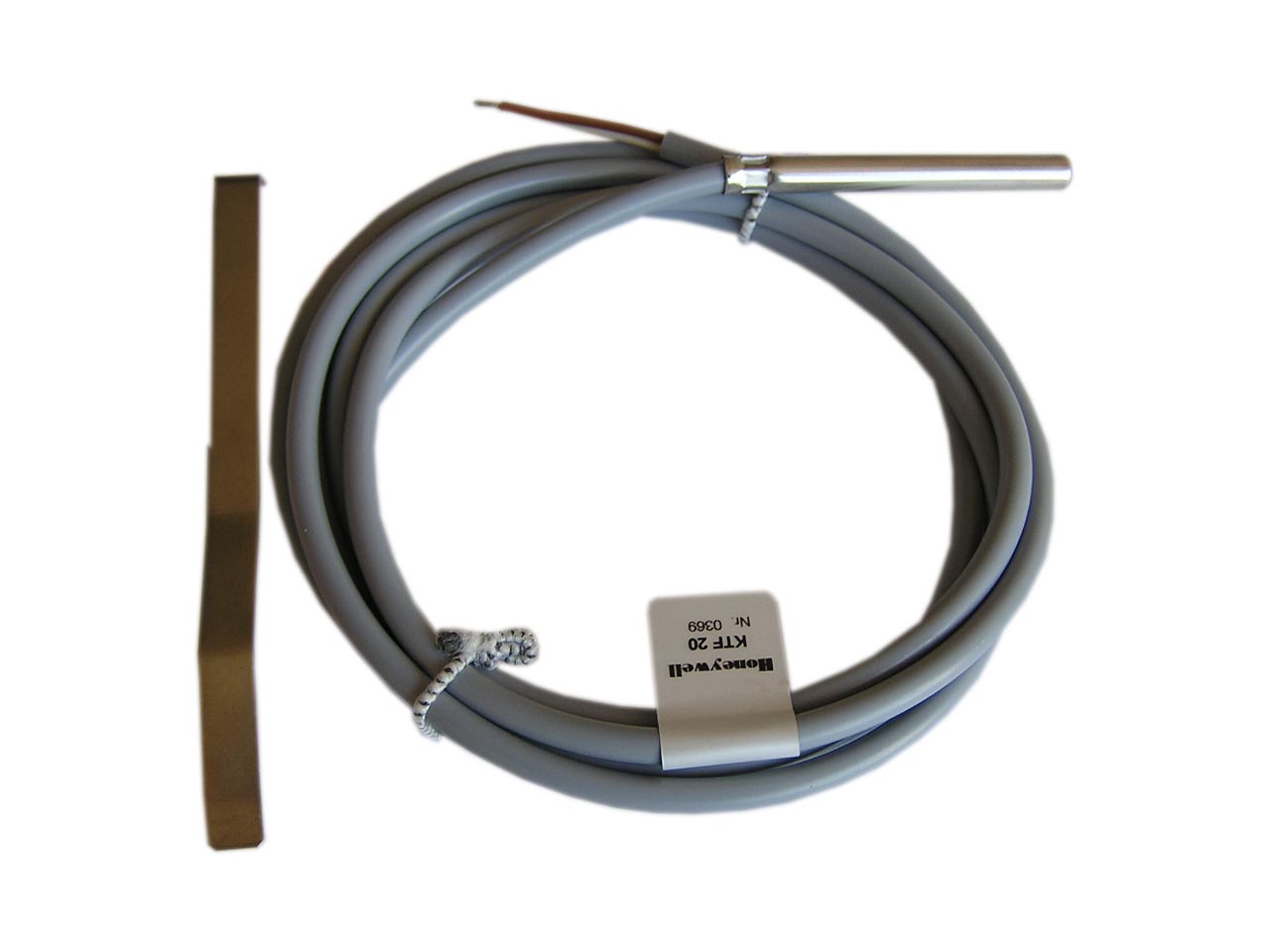

| Boiler temperature sensor (WF) – silicone |  |
KTF20-65-2M | 1 | -20… +110 | 2 m |

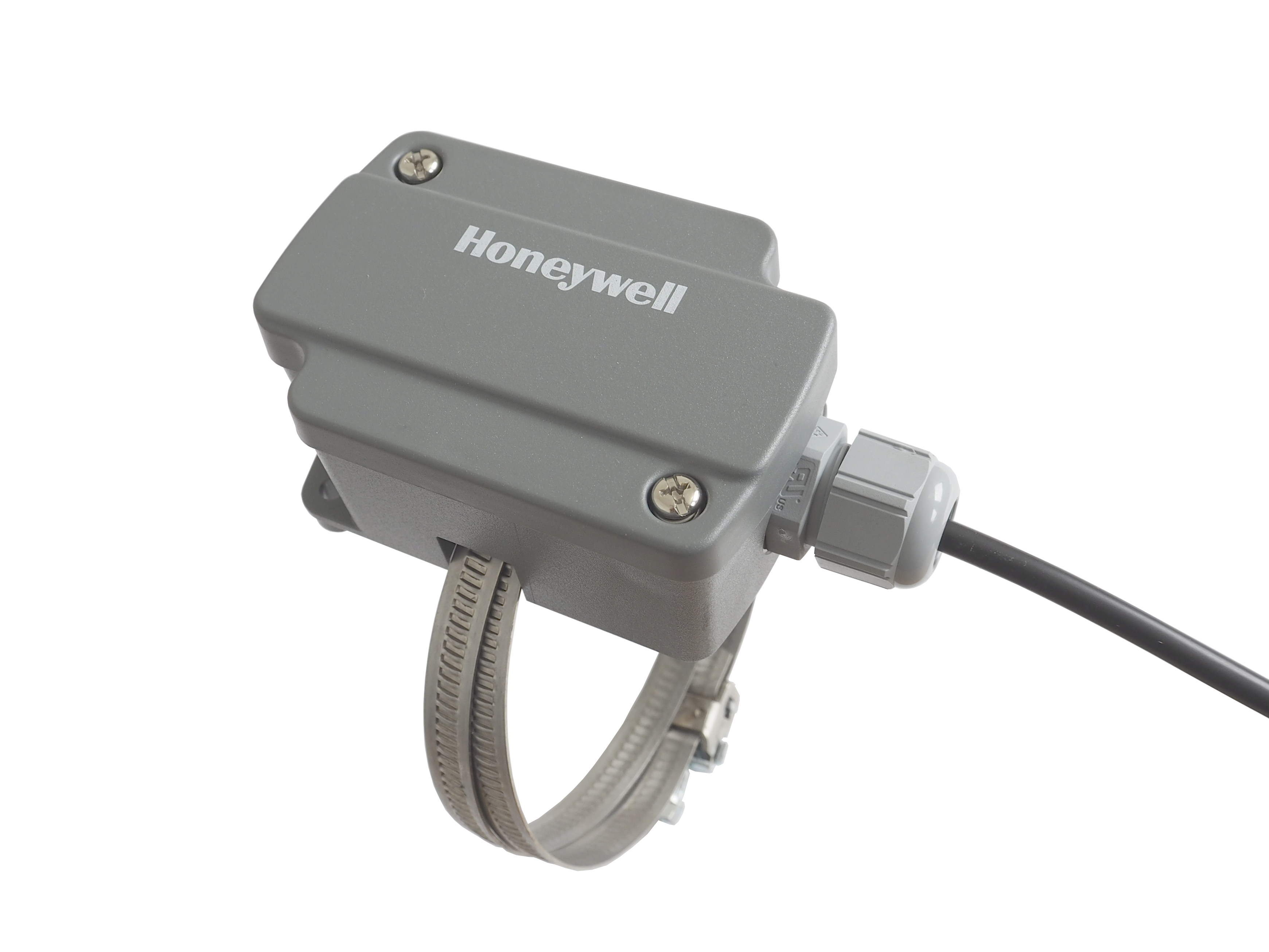

| Heating system contact sensor (VF) – wired – PVC |
 |
SF20-B54 | 3 | 0… +110 | 4 m |
| DHW sensor (SF) Storage tank sensor (PF / FPF) – PVC |
|
KTF20-65-5M-B | 3 | -20… +110 | 5 m |
Equithermal control set designed for boilers with manual application (with flue gas sensor) ATMOS ACD 03 AGF
– order code S0106
| Set composition / Name | Production designation | Number in set | Measuring range | The cable length | |
| Equithermal controller with touch screen and relay module – Complete (A + B) | |
ATMOS ACD 03 | 1 | – | – |
| Connector set | |
SCS34 | 1 | – | – |
| Outdoor temperature (AF) sensor – wired | |
AF20-B65 | 1 | -40… +70 | 0 m |
| Boiler temperature sensor (WF) – silicone |  |
KTF20-65-2M | 1 | -20… +110 | 2 m |
| Heating system contact sensor (VF) – wired – PVC |
|
SF20-B54 | 3 | 0… +110 | 4 m |
| DHW sensor (SF) Storage tank sensor (PF / FPF) – PVC |
 |
KTF20-65-5M-B | 3 | -20… +110 | 5 m |

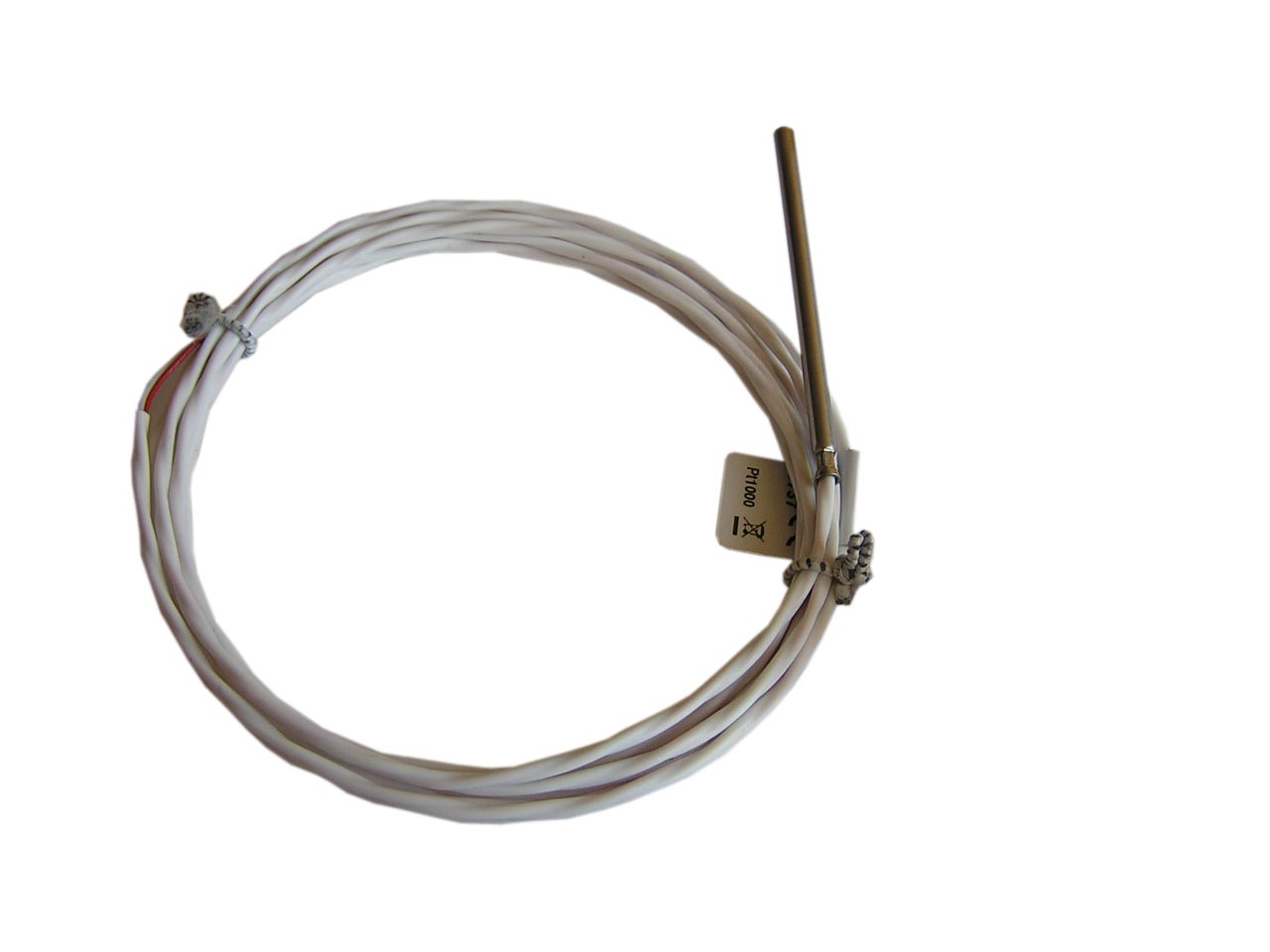

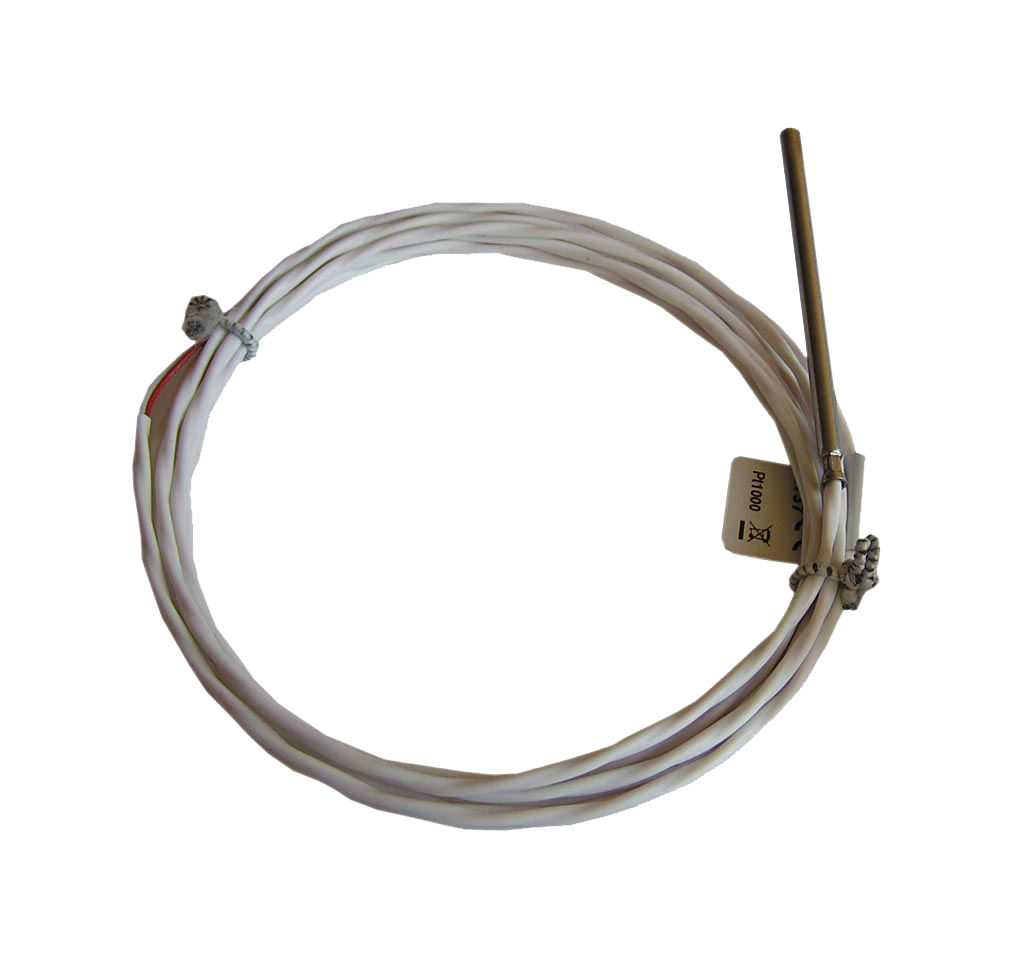

| Flue gas sensor for boiler operation control (AGF) |
|
AGF3 | 1 | 0… +400 | 2 m |
Equithermal control set designed for pellet boilers (with flue gas sensor) ATMOS ACD 03 AGF WIFI – coming soon
| Set composition / Name | Production designation | Number in set | Measuring range | The cable length | |
| Equithermal controller with touch screen and relay module – Complete (A + B) | |
ATMOS ACD 03 | 1 | – | – |
| Connector set | |
SCS34 | 1 | – | – |
| Outdoor temperature (AF) sensor – wired | |
AF20-B65 | 1 | -40… +70 | 0 m |
| Boiler temperature sensor (WF) – silicone | |
KTF20-65-2M | 1 | -20… +110 | 2 m |
| Heating system contact sensor (VF) – wired – PVC |
|
SF20-B54 | 3 | 0… +110 | 4 m |
| DHW sensor (SF) Storage tank sensor (PF / FPF) – PVC |
|
KTF20-65-5M-B | 3 | -20… +110 | 5 m |
| Flue gas sensor for boiler operation control (AGF) |
|
AGF3 | 1 | 0… +400 | 2 m |
| Wireless Ethernet / Wi-Fi gateway ATMOS WIFI GATE 1000 |
|
ATMOS WIFI GATE 1000 | 1 | – | – |
-

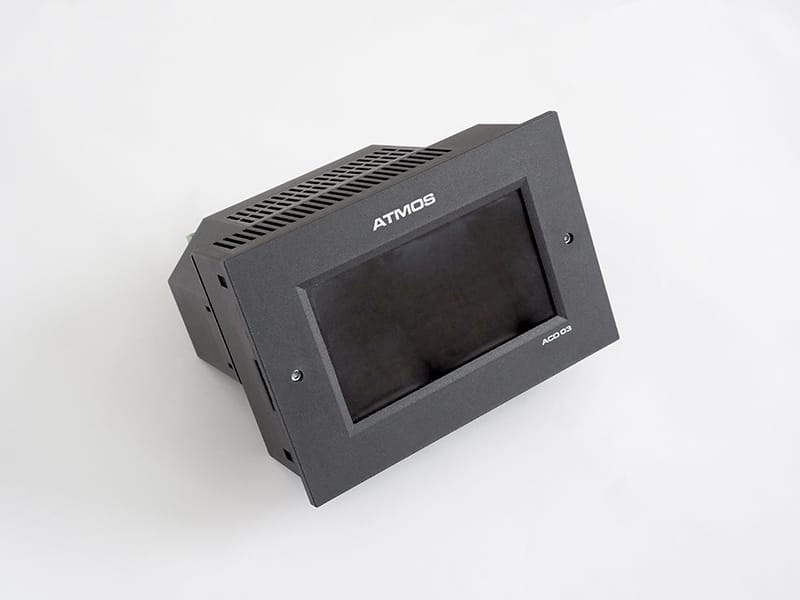

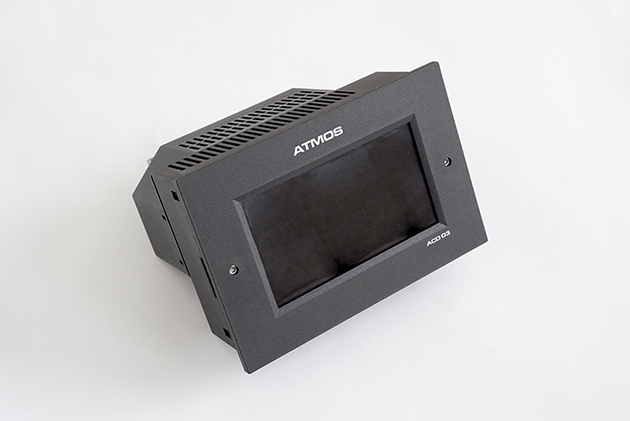

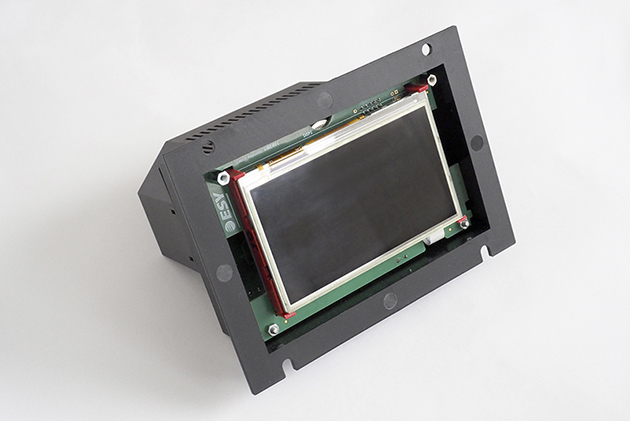

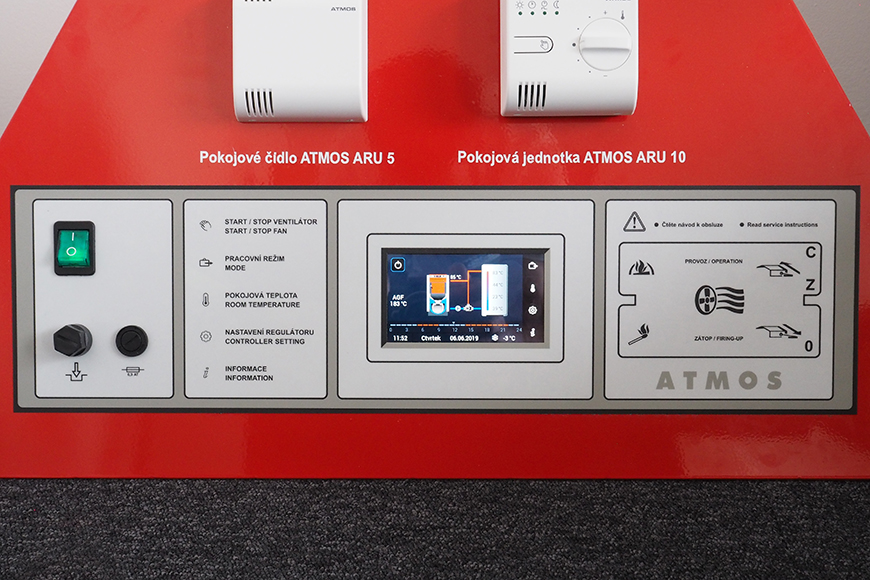

- ACD 03 controller
-

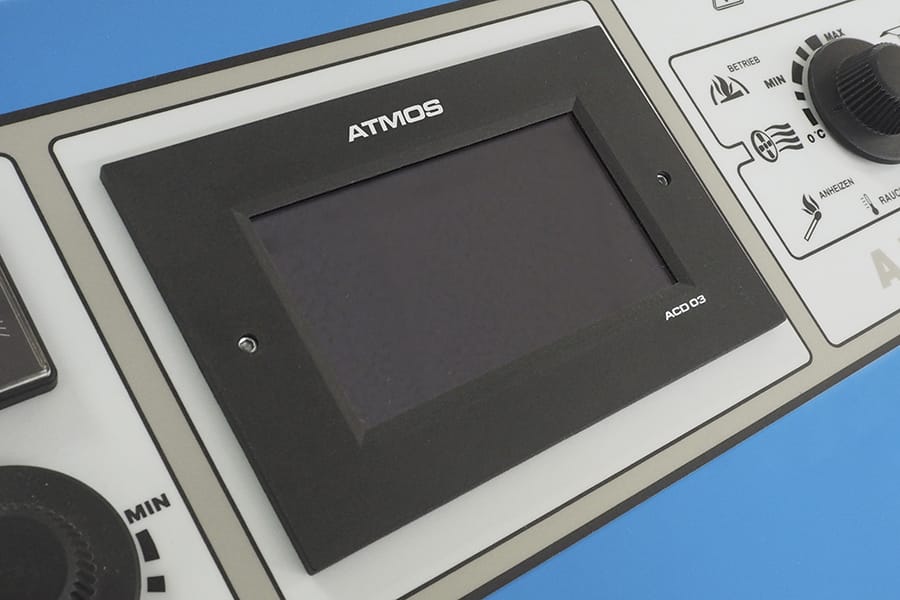

- The ACD 03 control is intended for additional installation in the boiler panel.
-

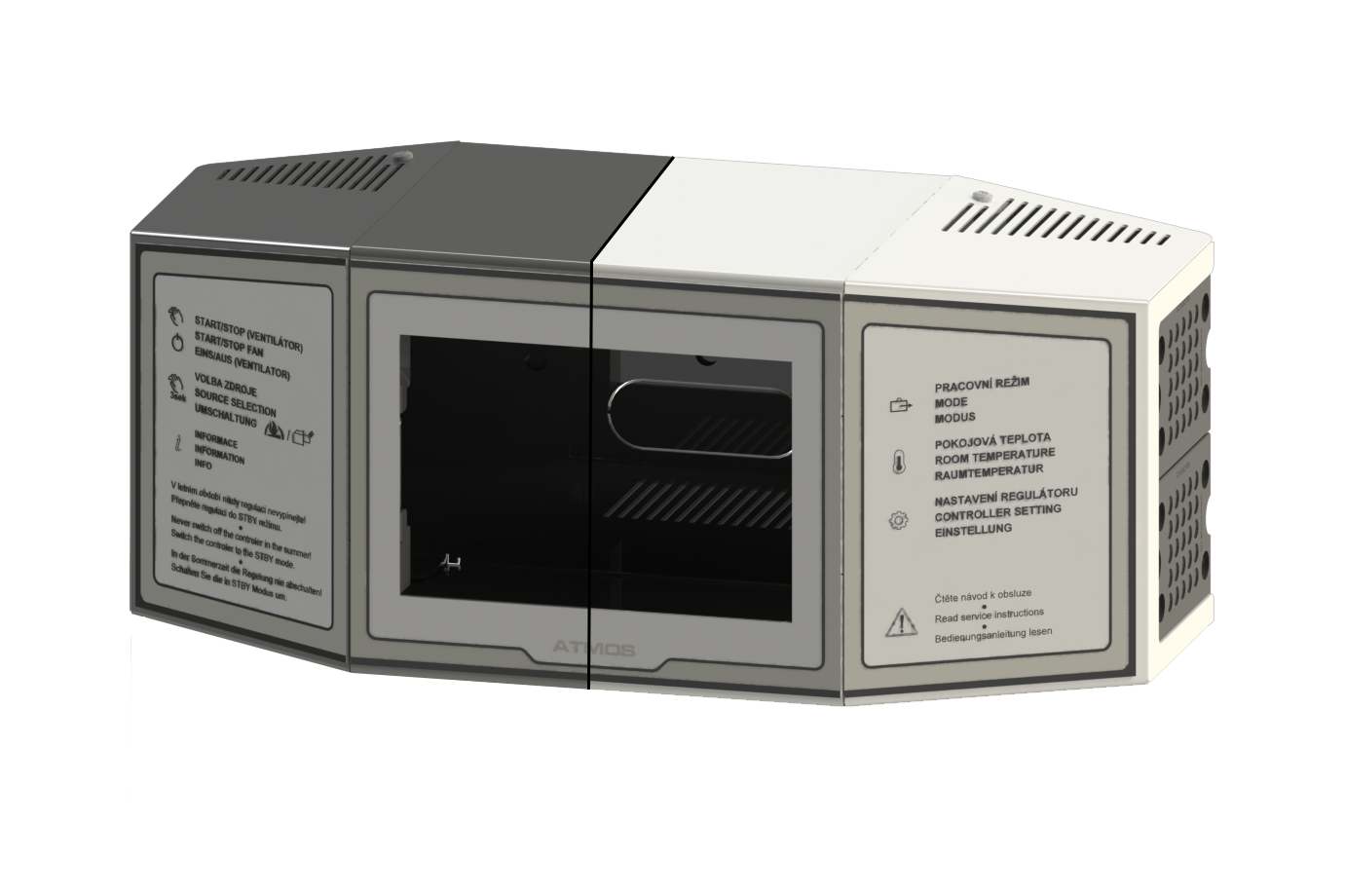

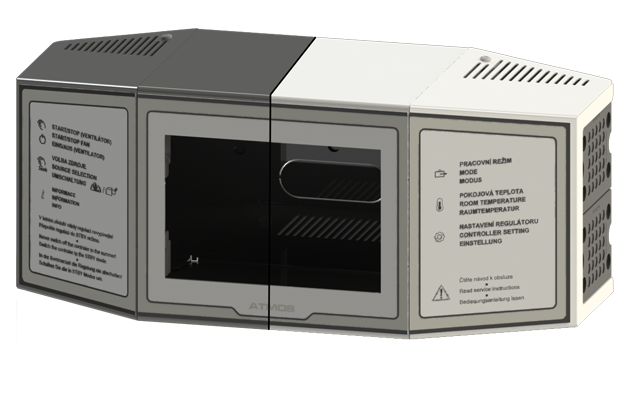

- SWS 18 box in dark gray or white

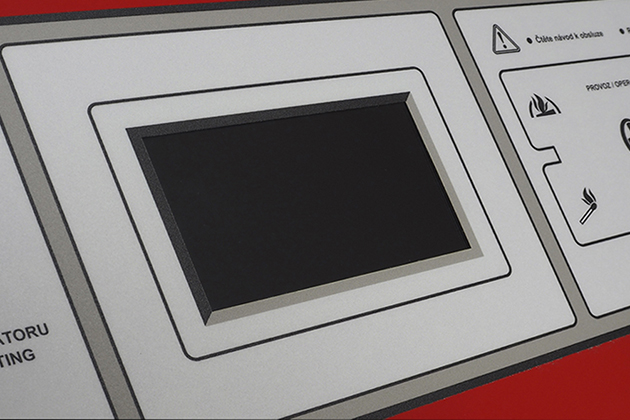

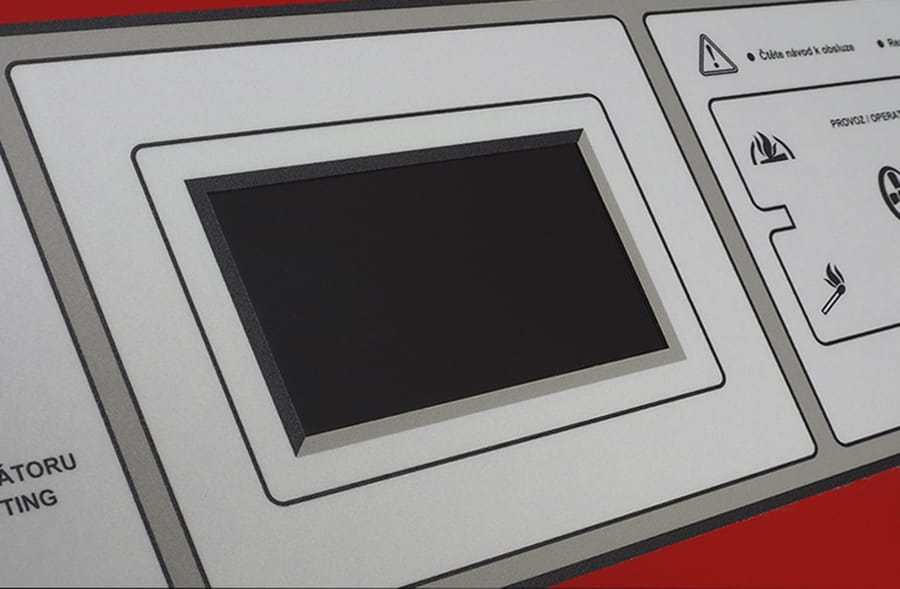

ATMOS ACD 04 - controller for installation in the boiler hood (in production)
The ACD 04 controller is manufactured in a design that is intended to be screwed into the instrument hood of the boiler. This is a design supplied directly from the factory, where the boiler does not contain conventional controls such as thermometers and thermostats. The boiler panel is only adapted for mounting the ACD 04 controller.
-

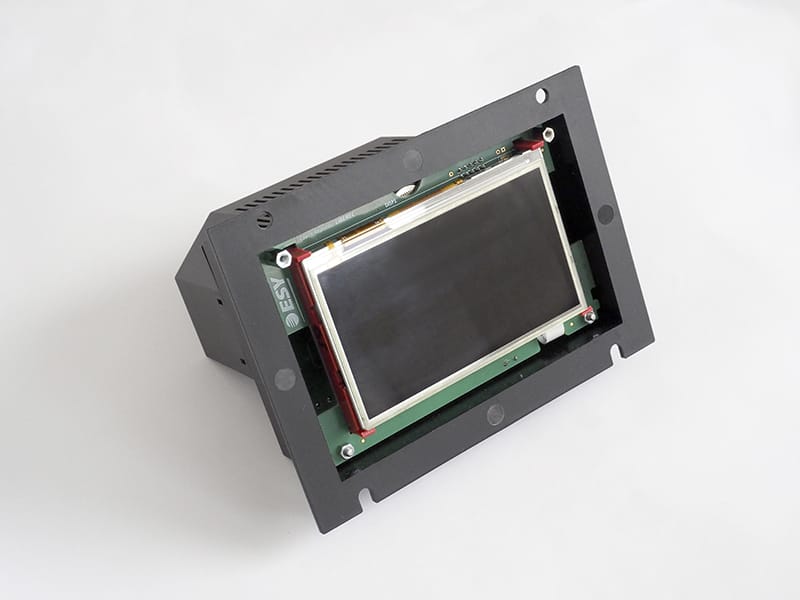

- ACD 04 controller
-
- The ACD 04 control is built into the boiler directly from the factory.
The controller is able to control the following:
- heating of three heating circuits (eg two circuits classic radiators + one circuit underfloor heating) according to the required room temperature, outdoor temperature (equithermal curves) and depending on the time using three types of room units (sensors)
or
one boiler circuit and two heating circuits – boiler circuit for maintaining the minimum return water temperature to the boiler of 65 °C, by means of a three-way mixing valve with actuator and pump and heating of two heating circuits (eg conventional radiators or underfloor heating) according to the required room temperature, outdoor temperature (equithermal curves) and depending on time using three types of room units (sensors)
- domestic hot water (DHW) heating to the required temperature (eg 55 °C)
- solar heating via solar collectors
- optimal charging and discharging of accumulation tanks according to customer requirements
- automatic switching of operation of two heat sources (boilers), eg wood and natural gas / wood boilers and pellets
- complete operation of the boiler based on the needs of the heating system, including the exhaust fan
- automatic wood ignition

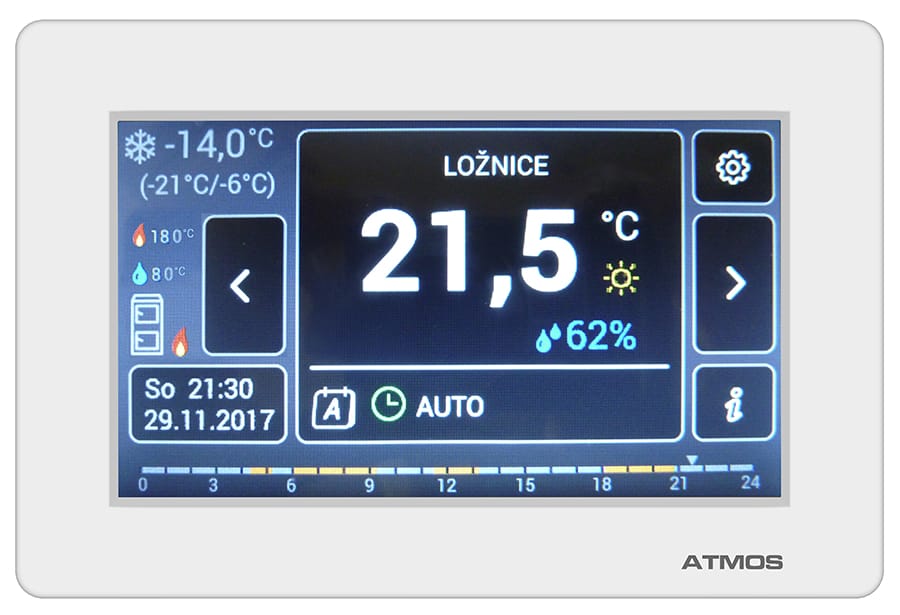

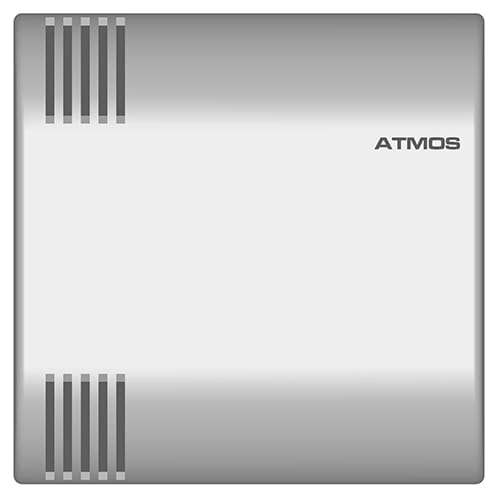

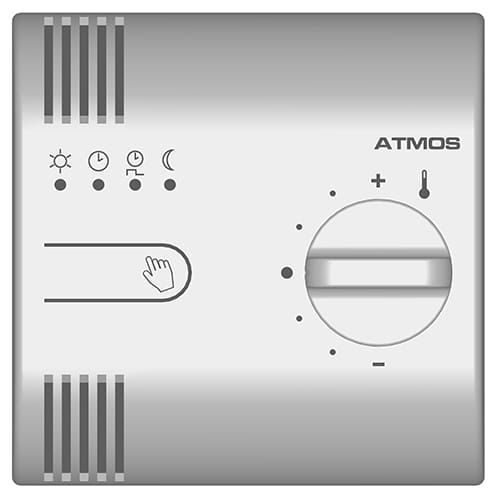

For optimal and economical heating of your building, we recommend that you purchase one of our room units ARU5, ARU10 and ARU30 with a touch screen as an accessory (for each heating circuit) for a better possibility to regulate the heating system. In the case of using the regulation for solar heating, it is necessary to purchase a sensor for solar FF00–75P65 (-20 – 300 °C) and another sensor KTF20.
Connection with ACD 03 / 04 control and ARUxx room units
Downloads
Operational manual – Equithermal regulation ACD 03/04
