Connection for systems without accumulation tanks up to 32 kW

Description: Professional stainless steel connection of the boiler based on 35 × 1.5 mm diameter pipe, designed to maintain a minimum temperature of return water to the boiler 70 °C and allowing quick installation using two 6/4“ nipples with a flat seal. The connection includes all the necessary components required by the manufacturer (safety valve 2.5 bar, vent valve, manometer, filter with magnet, two pumps, thermoregulation valve 70 °C, two shut-off valves, manually operated three-way valve).

Info: The connection is designed for quick connection of the boiler directly to the heating system. The connection includes 1“ inputs and outputs for connecting the heating circuit and the boiler for heating domestic hot water (DHW). The connection allows for a more extensive heating system to expand it to two or three heating circuits by purchasing a special manifold and the necessary circulation units with a spacing of 90 mm – 1“ ↑↓ 1“.

ATMOS F71 ESBE

Order code: P0671

	1 – outlet (of hot water) to the heating system – 1“
	2 – return from the heating system – 1“
	3 – output of hot water from the boiler to the boiler for heating domestic hot water (DHW) – 1“ (must be blinded when connected without a DHW boiler)
	4 – return inlet from the boiler heat exchanger for hot domestic water heating (DHW) – 1“ (must be blinded when connected without a DHW boiler)
	5 – free inlet enabling the creation of a bypass of the pump and thermoregulation valve in the boiler circuit (blinded by default)
	6 – safety set (safety valve 2,5 bar, vent valve and pressure gauge)
	7 – pump group ESBE GRA311 with manually operated three-way valve for one heating circuit – 1“ ↑↓ 1“
	8 – pump group ESBE GFA321 with thermoregulation valve (70 °C)
	9 – pump in the boiler circuit (part of pump group ESBE GFA321)
	10 – thermoregulation three-way valve (70 °C) (part of pump group ESBE GFA321)
	11 – ball valve with thermometer (part of pump group ESBE GFA321)
	12 – ball valves (6/4“) for easy valve servicing
	13 – expansion tank output (1“) or input to create a bypass of the boiler circuit for self-gravity circulation
	14 – filter with magnet
	15 – regulation ball valve of the boiler circuit (1”)

	Accessories in the package
	– 6/4” flat sealing	4 pcs
	– 1” flat sealing	2 pcs
	– 3/4” flat sealing	2 pcs
Prescribed pump setting in the boiler circuit – to maximum and constant displacement height We recommend not to change it	– 1” plug	3 pcs

The connection type	A height	B Connection depth behind the boiler
ATMOS F71 ESBE (DC18S, DC22S, DC25S, DC30SX, C15S, C18S, AC16S, AC25S)	1668	290
ATMOS F71 ESBE (C25ST + PSC 10 – 30) (C32ST + PSC 10 – 30)	1913	290

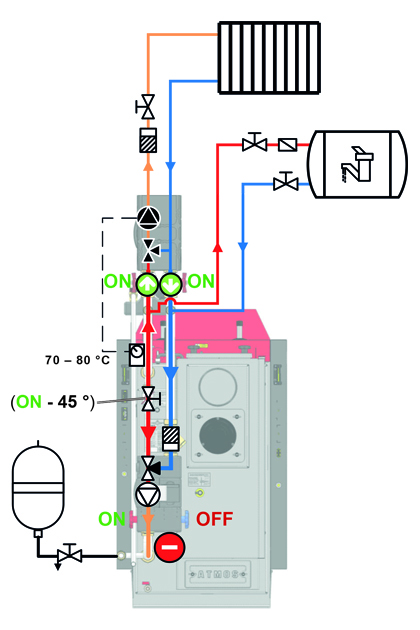

Example of connection without accumulation tank
(one heating circuit + DHW heating circuit)
– production design

– pump group ESBE GRA311 with manually operated three-way valve – code: P0533

INFO – With this connection, the hot water boiler is charged directly by the pump in the boiler circuit (we do not need another pump) during boiler operation. The water temperature in the boiler corresponds to the operating temperature of the boiler.

Accessories for extension of the basic connection

Circulation unit ATMOS ESBE GRA311 Controlled – actuator 120 s Spacing 90 mm – 1“ ↑↓ 1“ Recommended for radiators/underfloor heating (order code: P0505)	Circulation unit ATMOS ESBE GFA311 Thermostatic 20 – 55 °C Spacing 90 mm – 1“ ↑↓ 1“ Recommended for underfloor heating (order code: P0504)	Circulation unit ATMOS ESBE GDA311 Direct Spacing 90 mm – 1“ ↑↓ 1“ Recommended for domestic hot water (order code: P0503)

Manifold for three circulation units (three circuits) ATMOS ESBE GMA331 Spacing 90 mm – 1“ ↑↓ 1“ (order code: P0507)

Circulation unit ATMOS ESBE GRA311 Mixing Spacing 90 mm – 1“ ↑↓ 1“ Recommended for radiators (order code: P0533)	Circulation unit ATMOS ESBE GDA311 Thermostatic 20 – 55 °C Spacing 90 mm – 1“ ↑↓ 1“ Recommended for underfloor heating (order code: P0504)

Manifold for two circulation units (two circuits) ATMOS ESBE GMA421 Spacing 90 mm – 1“ ↑↓ 1“ (order code: P0506)

Servo actuator
ESBE ARA 661
230 V – 120 s – 6 Nm
(order code: P0415)

For more accessories click HERE
