Connection ATMOS F31 and F32 Laddomat AKU

Home Connection ATMOS F31 and F32 Laddomat AKU

Connection ATMOS F31 and F32 Laddomat AKU

Professional stainless steel connection of accumulation tanks with a boiler circuit using a pipe with a diameter of 35 × 1.5 mm designed to maintain the minimum temperature of the return water to the boiler and quickly connect the accumulation tanks (accumulation tank) in series. The connection contains all the necessary components required by the manufacturer – a 2.5 bar safety valve, a vent valve, a pressure gauge, Laddomat 22 and a filter with a magnet.

Connection of accumulation tanks and boilers up to 40 kW

As standard, 1 – 3 accumulation tanks can be connected using Connection F31 / F32, if it is necessary to connect more tanks, the 1SRA extension set can be used – for the given type of tank.

The connection allows the use of ATMOS/ESBE pump groups, which can be expanded to two or three heating circuits for a larger heating system by purchasing a special distributor and the necessary pump group.

For ATMOS/Dražice accumulation tanks:
Name	Type	Dimensions (mm)	Order code
AN 500	DZ	Ø 600/1946	P0142
NAD 500	Dražice	Ø 600/1970	–
AN 600	DZ	Ø 750/1611	P0238
AN 750	DZ	Ø 750/2001	P0143
AN 750	DH	Ø 790/1761	P0176
NAD 750	Dražice	Ø 750/2030	–
AN 800	DH	Ø 790/1916	P0201
AN 1000	DZ	Ø 850/2015	P0144
AN 1000	DH	Ø 790/2214	P0177
NAD 1000	Dražice	Ø 850/2040	–

Connection with F31 and F32 is intended for boilers (regardless of design – left/right):	Connection with F31 (right design) is also intended for boilers:
DC18S, DC22S, DC22SX, DC25S, DC30SX, DC32S, DC40SX, DC15GS, DC20GS, DC25GS, DC32GS, DC18GD, DC25GD, DC30GD, C15S, C18S, AC16S, AC25S, D14P, D21P, D25P, D20P, D30P, D40P	DC40GS, DC40GD, C25ST, C32ST, C40S, D10PX, D15PX, D20PX, D25PX

ATMOS F31 Laddomat AKU / ATMOS F32 Laddomat AKU

– basic connection for accumulation tanks and boilers

Advantages of ATMOS connection for accumulation tanks

quick installation = ready to use connection
installation variability = right or left design
easy installation = joints without packing on flat seals
universal connection = the possibility to use the connection with one, two or three (four) accumulation tanks
universal technical solution = serial connection of tanks, ideal for boilers with manual and automatic fuel adding
possibility to select the position of the safety set (on the boiler or on the tank)
the possibility to use it also for accumulation tanks of other manufacturers with relevant added connections

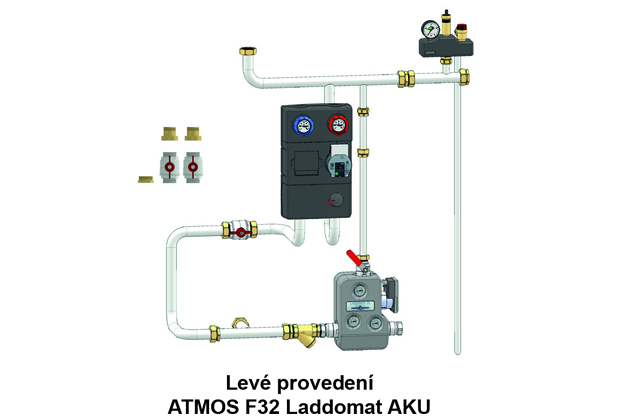

: ATMOS F32 Laddomat AKU – levé

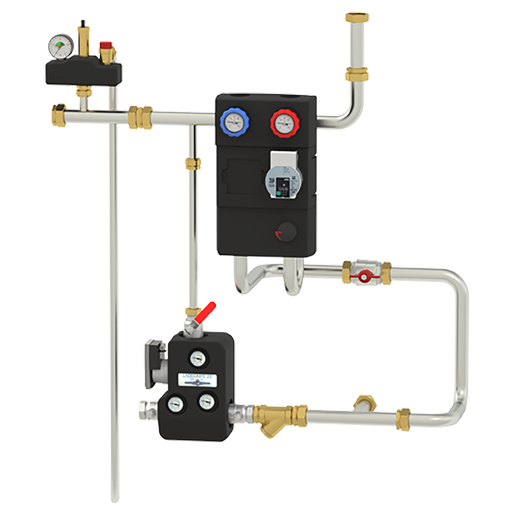

: ATMOS F31 Laddomat AKU – pravé

Order code: P0631 / P0632

	1 – outlet (of hot water) to the heating system
	2 – return from the heating system
	3 – ball valves with thermometers
	4 – hot water outlet from the boiler to the accumulation tank
	5 – ESBE GRA211 pump group with manually operated three-way valve for one heating circuit
	6 – safety set (safety valve 2,5 bar, vent valve and pressure gauge)
	7 – Laddomat X22 for boiler circuit (version for F31/F32) (with special ball valves)
	8 – pump in the boiler circuit (part of Laddomat X22)
	9 – thermometers (part of Laddomat X22)
	10 – screw fitting with ball valve – male thread 1″ boiler circuit bypass (part of Laddomat X22)
	11 – ball valve fitting – female thread 5/4″ return to the boiler (part of Laddomat X22)
	12 – filter with magnet
	13 – T-piece with outlet to the accumulation tank
	14 – control valve for hydraulic balance (45 °)
	15 – 5/4″x6/4″ half screw coupling for placement on the accumulation tank
	16 – 6/4″ ball valve for accumulation tank
	17 – Ø 22×144 mm extension tube for boilers with larger spacing of outlets and F32 basic connection
	18 – Ø 35×144 mm extension pipe for adjustment of spacing of outlets according to boiler type
	19 – 6/4″× 5/4″ reduction for change to Cu 35–1.5 pipe for the safety set
	20 – connecting piece (for F31 – order code:S1643 / for F32 – order code:S1677)
	21 – connection pipe of the pump group (for F31 – order code:S1642 / for F32 – order code:S1676)
	22 – branch pipe (pro F31 – order code:S1646 / for F32 – order code:S1678)

	Accessories in the package
	– 1” – 3 mm flat sealing	4 pcs
	– 6/4” – 3 mm flat sealing	15 pcs
	– 2” – 3 mm flat sealing	2 pcs
	– thermometers for Laddomat 22	3 pcs
	– ball valve 6/4“	2 pcs
	– extension pipe Ø 22×144	1 pc
Prescribed pump setting in the boiler circuit – to maximum and constant displacement height We recommend not to change it	– reduction 6/4“x5/4“	2 pcs
	– nut of the half screw coupling 6/4“	2 pcs
	– shank of the half screw coupling 5/4“	2 pcs

Basic connection consists of: 35 × 1.5 mm stainless steel main pipe, Laddomat X22 with ball valves in the boiler circuit, ESBE GRA211 pump group without actuator for the system circuit, KSG safety set (2.5 bar – 1″ vent and safety valve, pressure gauge), 6/4″ ball valves, filter with magnet, special brass nipples and half screw coupling with a flat seal for connection of the accumulation tank, Ø 35 × 144 mm and Ø 22 × 144 mm extension tubes.

The connection with F32 (left design) can be used for DC40GS boilers only with restrictions! The connecting pipe collides with the straight connection to the chimney (straight flue gas duct).The connection with F32 can therefore only be used if we use a flue gas duct with an elbow pointing upwards, so that we can bypass the flue gas duct with the outlet pipe from the boiler.

Connection with one accumulation tank

Connection with two accumulation tanks

Connection with three accumulation tanks

Dimensions and information for the installation of accumulation tanks:
	AN 500 (DZ)	AN 600 (DZ)	AN 750 (DZ)	AN 800 (DH)	AN 1000 (DZ)	AN 750 (DH)	AN 1000 (DH)	NAD 500 (Dražice)	NAD 750(Dražice)	NAD 1000 (Dražice)
Ø without isolation	600	750	750	790	850	790	790	600	750	850
Ø D with insulation	800	950	950	990	1050	990	990	800	950	1050
A1-1	1075	1225	1225	1265	1325	1265	1265	1075	1225	1325
A1-2	2000	2125	2225	2285	2375	2285	2285	2000	2125	2375
A1-3	2840	3115	3215	3315	3465	3315	3315	2840	3115	3465
A2	1640	1940	1940	2020	2140	2020	2020	1640	1940	2140
A3	840	990	990	1030	1090	1030	1030	840	990	1090
A4	40
A5	220
A6-1	550	625	625	645	675	645	645	550	625	675
A6-2	1390	1615	1615	1675	1765	1675	1675	1390	1615	1765
A6-3	2230	2605	2605	2705	2855	2705	2705	2230	2605	2855
B3	1190	1340	1340	1380	1440	1380	1380	1190	1340	1440
B4	1071	1221	1221	1261	1321	1261	1261	1071	1221	1321
B5	400	475	475	495	525	495	495	400	475	525
C	1946	1611	2001	1916	2015	1761	2214	1970	2030	2040
C1	747 / 894
C2	325
C3	1152 mm – without manifold
1	5/4″
2	1″
3	5/4″							1″
4	levelling feet 3 pcs (0 – 60 mm) – we do not recommend installation without feet.
*Dimensions are in milimeters

AN600 type DZ accumulation tank cannot be used for DC40GS, DC40GD, C25ST, C32ST, C40S, D15PX, D20PX, D25PX boilers to the top outlets from the accumulation tank situated in low position. type DZ accumulation tank with connection to F32 can be used with DC32S, DC40SX, DC15GS, DC20GS, DC25GS, DC32GS, DC18GD, DC25GD, DC30GD, D10PX boilers in the case of using a flue gas duct with an elbow pointing upwards so that the outlet pipe from the boiler can bypass the flue gas duct.

ATMOS F31 Laddomat AKU

– right connection with one accumulation tank

When installing one accumulation tank with ATMOS F31 Laddomat AKU basic connection, we must use a connecting pipe set (elbow) between the connection and the upper horizontal outlet from the accumulation tank, depending on the type of accumulation tank selected.

Right design – the accumulation tank is located on the right side of the boiler
Connection for one accumulation tank (tank type)	Basic connection (boiler and system circuit) Order code:	Connecting pipe set Order code:	Order code: Right design
Set name (A + B)	A	B	A + B
1AN500DZ – F31 Laddomat AKU (for AN500 (type DZ – Ø 600 / 1946))	ATMOS F31 Laddomat AKU – right design P0631	1SP-DZ500 S1730	ATMOS F31 Laddomat AKU + 1SP-DZ500 P0700
1AN600DZ – F31 Laddomat AKU (for AN600 (type DZ – Ø 750 / 1611))		1SP-DZ600 S1731	ATMOS F31 Laddomat AKU + 1SP-DZ600 P0701
1AN750DZ – F31 Laddomat AKU (for AN750 (type DZ – Ø 750 / 2001))		1SP-DZ750 S1732	ATMOS F31 Laddomat AKU + 1SP-DZ750 P0702
1AN750DH – F31 Laddomat AKU (for AN750 (type DH – Ø 790 / 1761))		1SP-DH750 S1733	ATMOS F31 Laddomat AKU + 1SP-DH750 P0703
1AN800DH – F31 Laddomat AKU (for AN800 (type DH – Ø 790 / 1916))		1SP-DH800 S1734	ATMOS F31 Laddomat AKU + 1SP-DH800 P0704
1AN1000DH – F31 Laddomat AKU (for AN1000 (type DH – Ø 790 / 2214))		1SP-DH1000 S1735	ATMOS F31 Laddomat AKU + 1SP-DH1000 P0705
1AN1000DZ – F31 Laddomat AKU (for AN1000 (type DZ – Ø 850 / 2015))		1SP-DZ1000 S1736	ATMOS F31 Laddomat AKU + 1SP-DZ1000 P0706
1NAD500DZ – F31 Laddomat AKU (for NAD500 (type Dražice – Ø 600 / 1970))		1SP-NAD500 S1737	ATMOS F31 Laddomat AKU + 1SP-NAD500 P0707
1NAD750DZ – F31 Laddomat AKU (for NAD750 (type Dražice – Ø 750 / 2030))		1SP-NAD750 S1738	ATMOS F31 Laddomat AKU + 1SP-NAD750 P0708
1NAD1000DZ – F31 Laddomat AKU (for NAD1000 (type Dražice – Ø 850 / 2040))		1SP-NAD1000 S1739	ATMOS F31 Laddomat AKU + 1SP-NAD1000 P0709

ATMOS F32 Laddomat AKU

– left connection with one accumulation tank

When installing one accumulation tank with ATMOS F32 Laddomat AKU basic connection, we must use a connecting pipe set (elbow) between the connection and the upper horizontal outlet from the accumulation tank, depending on the type of accumulation tank selected.

Left design – the accumulation tank is located on the left side of the boiler
Connection for one accumulation tank (tank type)	Basic connection (boiler and system circuit) Order code:	Connecting pipe set Order code:	Order code: Left design
Set name (A + B)	A	B	A + B
1AN500DZ – F32 Laddomat AKU (for AN500 (type DZ – Ø 600 / 1946))	ATMOS F32 Laddomat AKU – left design P0632	1SP-DZ500 S1730	ATMOS F32 Laddomat AKU + 1SP-DZ500 P0710
1AN600DZ – F32 Laddomat AKU (for AN600 (type DZ – Ø 750 / 1611))		1SP-DZ600 S1731	ATMOS F32 Laddomat AKU + 1SP-DZ600 P0711
1AN750DZ – F32 Laddomat AKU (for AN750 (type DZ – Ø 750 / 2001))		1SP-DZ750 S1732	ATMOS F32 Laddomat AKU + 1SP-DZ750 P0712
1AN750DH – F32 Laddomat AKU (for AN750 (type DH – Ø 790 / 1761))		1SP-DH750 S1733	ATMOS F32 Laddomat AKU + 1SP-DH750 P0713
1AN800DH – F32 Laddomat AKU (for AN800 (type DH – Ø 790 / 1916))		1SP-DH800 S1734	ATMOS F32 Laddomat AKU + 1SP-DH800 P0714
1AN1000DH – F32 Laddomat AKU (for AN1000 (type DH – Ø 790 / 2214))		1SP-DH1000 S1735	ATMOS F32 Laddomat AKU + 1SP-DH1000 P0715
1AN1000DZ – F32 Laddomat AKU (for AN1000 (type DZ – Ø 850 / 2015))		1SP-DZ1000 S1736	ATMOS F32 Laddomat AKU + 1SP-DZ1000 P0716
1NAD500DZ – F32 Laddomat AKU (for NAD500 (type Dražice – Ø 600 / 1970))		1SP-NAD500 S1737	ATMOS F32 Laddomat AKU + 1SP-NAD500 P0717
1NAD750DZ – F32 Laddomat AKU (for NAD750 (type Dražice – Ø 750 / 2030))		1SP-NAD750 S1738	ATMOS F32 Laddomat AKU + 1SP-NAD750 P0718
1NAD1000DZ – F32 Laddomat AKU (for NAD1000 (type Dražice – Ø 850 / 2040))		1SP-NAD1000 S1739	ATMOS F32 Laddomat AKU + 1SP-NAD1000 P0719

ATMOS F31 Laddomat AKU

– right connection with two accumulation tanks

When installing two accumulation tanks with ATMOS F31 Laddomat AKU basic connection, we must use a connecting pipe set (elbow + connecting pipe) between the connection and the upper horizontal outlet from the accumulation tank and between the first and second accumulation tank, depending on the type of accumulation tanks selected.

Right design – the accumulation tanks are located on the right side of the boiler
Connection for two accumulation tanks (tank type)	Basic connection (boiler and system circuit) Order code:	Connecting pipe set Order code:	Order code: Right design
Set name (A + B)	A	B	A + B
2AN500DZ – F31 Laddomat AKU (for AN500 (type DZ – Ø 600 / 1946))	ATMOS F31 Laddomat AKU – right design P0631	2SP-DZ500 S1740	ATMOS F31 Laddomat AKU + 2SP-DZ500 P0720
2AN600DZ – F31 Laddomat AKU (for AN600 (type DZ – Ø 750 / 1611))		2SP-DZ600 S1741	ATMOS F31 Laddomat AKU + 2SP-DZ600 P0721
2AN750DZ – F31 Laddomat AKU (for AN750 (type DZ – Ø 750 / 2001))		2SP-DZ750 S1742	ATMOS F31 Laddomat AKU + 2SP-DZ750 P0722
2AN750DH – F31 Laddomat AKU (for AN750 (type DH – Ø 790 / 1761))		2SP-DH750 S1743	ATMOS F31 Laddomat AKU + 2SP-DH750 P0723
2AN800DH – F31 Laddomat AKU (for AN800 (type DH – Ø 790 / 1916))		2SP-DH800 S1744	ATMOS F31 Laddomat AKU + 2SP-DH800 P0724
2AN1000DH – F31 Laddomat AKU (for AN1000 (type DH – Ø 790 / 2214))		2SP-DH1000 S1745	ATMOS F31 Laddomat AKU + 2SP-DH1000 P0725
2AN1000DZ – F31 Laddomat AKU (for AN1000 (type DZ – Ø 850 / 2015))		2SP-DZ1000 S1746	ATMOS F31 Laddomat AKU + 2SP-DZ1000 P0726
2NAD500DZ – F31 Laddomat AKU (for NAD500 (type Dražice – Ø 600 / 1970))		2SP-NAD500 S1747	ATMOS F31 Laddomat AKU + 2SP-NAD500 P0727
2NAD750DZ – F31 Laddomat AKU (for NAD750 (type Dražice – Ø 750 / 2030))		2SP-NAD750 S1748	ATMOS F31 Laddomat AKU + 2SP-NAD750 P0728
2NAD1000DZ – F31 Laddomat AKU (for NAD1000 (type Dražice – Ø 850 / 2040))		2SP-NAD1000 S1749	ATMOS F31 Laddomat AKU + 2SP-NAD1000 P0729

ATMOS F32 Laddomat AKU

– left connection with two accumulation tanks

When installing two accumulation tanks with ATMOS F32 Laddomat AKU basic connection, we must use a connecting pipe set (elbow + connecting pipe) between the connection and the upper horizontal outlet from the accumulation tank and between the first and second accumulation tank, depending on the type of accumulation tanks selected.

Left design – the accumulation tanks are located on the left side of the boiler
Connection for two accumulation tanks (tank type)	Basic connection (boiler and system circuit) Order code:	Connecting pipe set Order code:	Order code: Left design
Set name (A + B)	A	B	A + B
2AN500DZ – F32 Laddomat AKU (for AN500 (type DZ – Ø 600 / 1946))	ATMOS F32 Laddomat AKU – left design P0632	2SP-DZ500 S1740	ATMOS F32 Laddomat AKU + 2SP-DZ500 P0730
2AN600DZ – F32 Laddomat AKU (for AN600 (type DZ – Ø 750 / 1611))		2SP-DZ600 S1741	ATMOS F32 Laddomat AKU + 2SP-DZ600 P0731
2AN750DZ – F32 Laddomat AKU (for AN750 (type DZ – Ø 750 / 2001))		2SP-DZ750 S1742	ATMOS F32 Laddomat AKU + 2SP-DZ750 P0732
2AN750DH – F32 Laddomat AKU (for AN750 (type DH – Ø 790 / 1761))		2SP-DH750 S1743	ATMOS F32 Laddomat AKU + 2SP-DH750 P0733
2AN800DH – F32 Laddomat AKU (for AN800 (type DH – Ø 790 / 1916))		2SP-DH800 S1744	ATMOS F32 Laddomat AKU + 2SP-DH800 P0734
2AN1000DH – F32 Laddomat AKU (for AN1000 (type DH – Ø 790 / 2214))		2SP-DH1000 S1745	ATMOS F32 Laddomat AKU + 2SP-DH1000 P0735
2AN1000DZ – F32 Laddomat AKU (for AN1000 (type DZ – Ø 850 / 2015))		2SP-DZ1000 S1746	ATMOS F32 Laddomat AKU + 2SP-DZ1000 P0736
2NAD500DZ – F32 Laddomat AKU (for NAD500 (type Dražice – Ø 600 / 1970))		2SP-NAD500 S1747	ATMOS F32 Laddomat AKU + 2SP-NAD500 P0737
2NAD750DZ – F32 Laddomat AKU (for NAD750 (type Dražice – Ø 750 / 2030))		2SP-NAD750 S1748	ATMOS F32 Laddomat AKU + 2SP-NAD750 P0738
2NAD1000DZ – F32 Laddomat AKU (for NAD1000 (type Dražice – Ø 850 / 2040))		2SP-NAD1000 S1749	ATMOS F32 Laddomat AKU + 2SP-NAD1000 P0739

ATMOS F31 Laddomat AKU

– right connection with three accumulation tanks

When installing three accumulation tanks with ATMOS F31 Laddomat AKU basic connection, we must use a connecting pipe set (elbow + connecting pipe) between the connection and the upper horizontal outlet from the accumulation tank and between the first, second and third accumulation tank, depending on the type of accumulation tanks selected.

Right design – the accumulation tanks are located on the right side of the boiler
Connection for three accumulation tanks (tank type)	Basic connection (boiler and system circuit) Order code:	Connecting pipe set Order code:	Order code: Left design
Set name (A + B)	A	B	A + B
3AN500DZ – F31 Laddomat AKU (for AN500 (type DZ – Ø 600 / 1946))	ATMOS F31 Laddomat AKU – right design P0631	3SP-DZ500 S1750	ATMOS F31 Laddomat AKU + 3SP-DZ500 P0740
3AN600DZ – F31 Laddomat AKU (for AN600 (type DZ – Ø 750 / 1611))		3SP-DZ600 S1751	ATMOS F31 Laddomat AKU + 3SP-DZ600 P0741
3AN750DZ – F31 Laddomat AKU (for AN750 (type DZ – Ø 750 / 2001))		3SP-DZ750 S1752	ATMOS F31 Laddomat AKU + 3SP-DZ750 P0742
3AN750DH – F31 Laddomat AKU (for AN750 (type DH – Ø 790 / 1761))		3SP-DH750 S1753	ATMOS F31 Laddomat AKU + 3SP-DH750 P0743
3AN800DH – F31 Laddomat AKU (for AN800 (type DH – Ø 790 / 1916))		3SP-DH800 S1754	ATMOS F31 Laddomat AKU + 3SP-DH800 P0744
3AN1000DH – F31 Laddomat AKU (for AN1000 (type DH – Ø 790 / 2214))		3SP-DH1000 S1755	ATMOS F31 Laddomat AKU + 3SP-DH1000 P0745
3AN1000DZ – F31 Laddomat AKU (for AN1000 (type DZ – Ø 850 / 2015))		3SP-DZ1000 S1756	ATMOS F31 Laddomat AKU + 3SP-DZ1000 P0746
3NAD500DZ – F31 Laddomat AKU (for NAD500 (type Dražice – Ø 600 / 1970))		3SP-NAD500 S1757	ATMOS F31 Laddomat AKU + 3SP-NAD500 P0747
3NAD750DZ – F31 Laddomat AKU (for NAD750 (type Dražice – Ø 750 / 2030))		3SP-NAD750 S1758	ATMOS F31 Laddomat AKU + 3SP-NAD750 P0748
3NAD1000DZ – F31 Laddomat AKU (for NAD1000 (type Dražice – Ø 850 / 2040))		3SP-NAD1000 S1759	ATMOS F31 Laddomat AKU + 3SP-NAD1000 P0749

ATMOS F32 Laddomat AKU

– left connection with three accumulation tanks

When installing three accumulation tanks with ATMOS F32 Laddomat AKU basic connection, we must use a connecting pipe set (elbow + connecting pipe) between the connection and the upper horizontal outlet from the accumulation tank and between the first, second and third accumulation tank, depending on the type of accumulation tanks selected.

Left design – the accumulation tanks are located on the left side of the boiler
Connection for three accumulation tanks (tank type)	Basic connection (boiler and system circuit) Order code:	Connecting pipe set Order code:	Order code: Left design
Název sady (A + B)	A	B	A + B
3AN500DZ – F32 Laddomat AKU (for AN500 (type DZ – Ø 600 / 1946))	ATMOS F32 Laddomat AKU – left design P0632	3SP-DZ500 S1750	ATMOS F32 Laddomat AKU + 3SP-DZ500 P0750
3AN600DZ – F32 Laddomat AKU (for AN600 (type DZ – Ø 750 / 1611))		3SP-DZ600 S1751	ATMOS F32 Laddomat AKU + 3SP-DZ600 P0751
3AN750DZ – F32 Laddomat AKU (for AN750 (type DZ – Ø 750 / 2001))		3SP-DZ750 S1752	ATMOS F32 Laddomat AKU + 3SP-DZ750 P0752
3AN750DH – F32 Laddomat AKU (for AN750 (type DH – Ø 790 / 1761))		3SP-DH750 S1753	ATMOS F32 Laddomat AKU + 3SP-DH750 P0753
3AN800DH – F32 Laddomat AKU (for AN800 (type DH – Ø 790 / 1916))		3SP-DH800 S1754	ATMOS F32 Laddomat AKU + 3SP-DH800 P0754
3AN1000DH – F32 Laddomat AKU (for AN1000 (type DH – Ø 790 / 2214))		3SP-DH1000 S1755	ATMOS F32 Laddomat AKU + 3SP-DH1000 P0755
3AN1000DZ – F32 Laddomat AKU (for AN1000 (type DZ – Ø 850 / 2015))		3SP-DZ1000 S1756	ATMOS F32 Laddomat AKU + 3SP-DZ1000 P0756
3NAD500DZ – F32 Laddomat AKU (for NAD500 (type Dražice – Ø 600 / 1970))		3SP-NAD500 S1757	ATMOS F32 Laddomat AKU + 3SP-NAD500 P0757
3NAD750DZ – F32 Laddomat AKU (for NAD750 (type Dražice – Ø 750 / 2030))		3SP-NAD750 S1758	ATMOS F32 Laddomat AKU + 3SP-NAD750 P0758
3NAD1000DZ – F32 Laddomat AKU (for NAD1000 (type Dražice – Ø 850 / 2040))		3SP-NAD1000 S1759	ATMOS F32 Laddomat AKU + 3SP-NAD1000 P0759

Examples of connection ATMOS F31/F32 Laddomat AKU

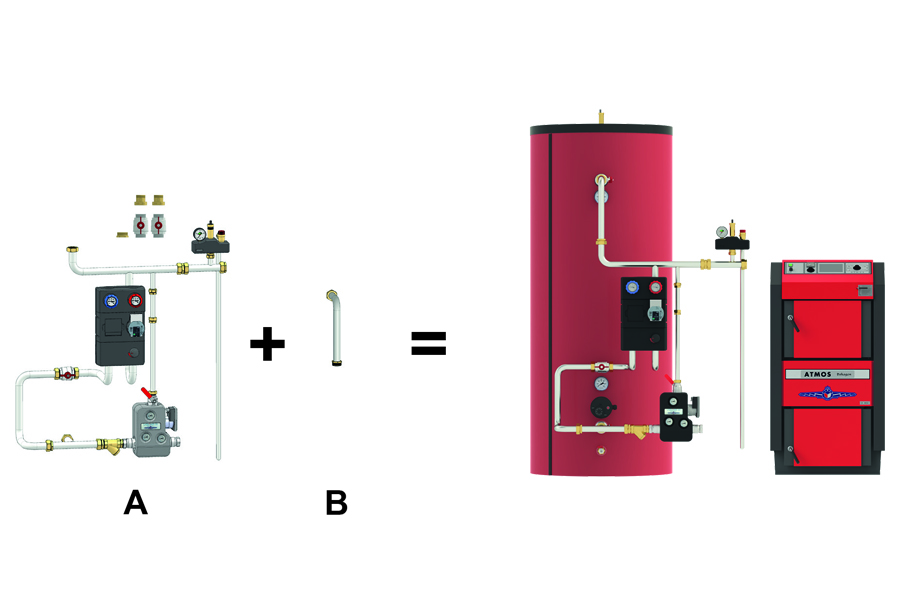

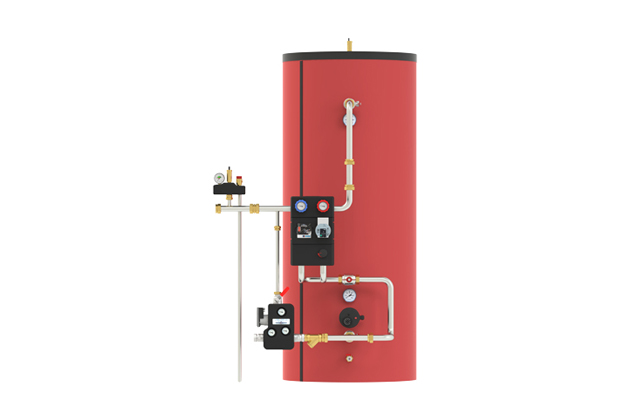

: ATMOS F31 Laddomat AKU + 1SP-DH1000

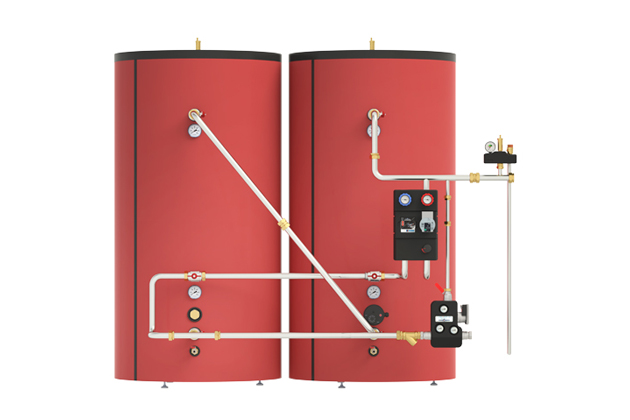

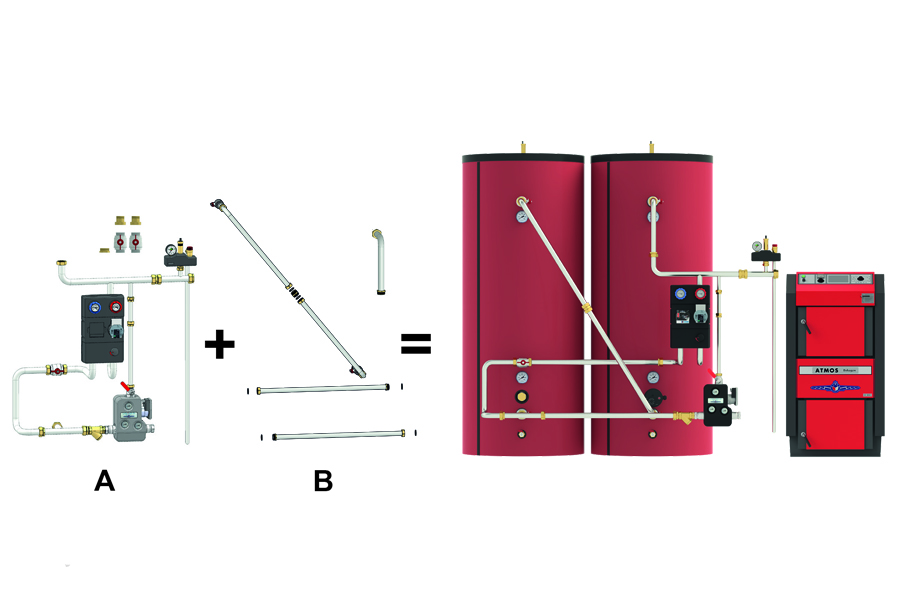

: ATMOS F32 Laddomat AKU + 2SP-DH800

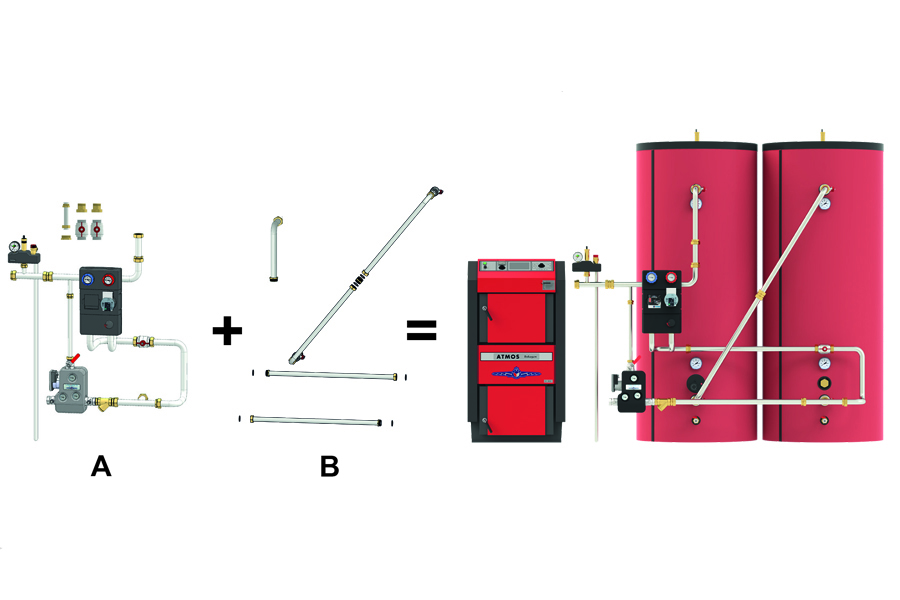

: ATMOS F31 Laddomat AKU + 2SP-DH750 + manifold ATMOS ESBE GMA421 (two circuits) + pump group ATMOS ESBE GDA211 – direct

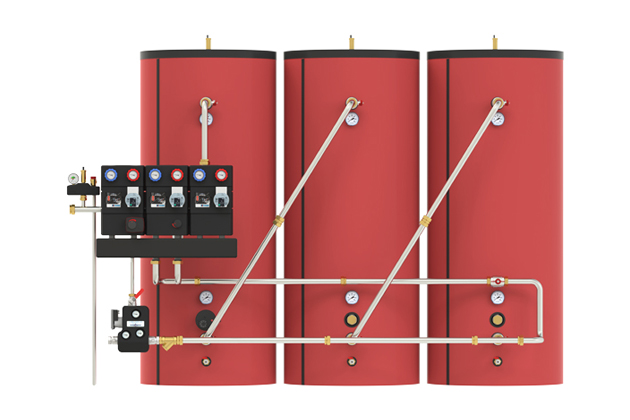

: ATMOS F31 Laddomat AKU + 3SP-DH1000 + manifold ATMOS ESBE GMA431 (three circuits) + pump group ATMOS ESBE GDA211 – direct + pump group ATMOS ESBE GRA211 – mixing

: Connection ATMOS F31/32 AKU

Accessories for extension of the basic connection

Circulation unit ATMOS ESBE GRA211 Controlled – actuator 120 s Spacing 125 mm – 1“ ↑↓ 1“ Recommended for radiators/underfloor heating (order code: P0514)	Circulation unit ATMOS ESBE GFA211 Thermostatic 20 – 55 °C Spacing 125 mm – 1“ ↑↓ 1“ Recommended for underfloor heating (order code: P0513)	Circulation unit ATMOS ESBE GDA211 Direct Spacing 125 mm – 1“ ↑↓ 1“ Recommended for domestic hot water (order code: P0512)

Manifold for three circulation units (three circuits) ATMOS ESBE GMA431 Spacing 125 mm – 1“ ↑↓ 1“ (order code: P0516)

Circulation unit ATMOS ESBE GRA211 Mixing Spacing 125 mm – 1“ ↑↓ 1“ Recommended for radiators (order code: P0538)	Circulation unit ATMOS ESBE GDA211 Direct Spacing 125 mm – 1“ ↑↓ 1“ Recommended for domestic hot water (order code: P0512)

Manifold for two circulation units (two circuits) ATMOS ESBE GMA421 Spacing 125 mm – 1“ ↑↓ 1“ (order code: P0515)

Servo drive
ESBE ARA 661
230 V – 120 s – 6 Nm
(order code: P0415)

Click HERE for more accessories
